5 Km Fiber-Coupled IR Laser Illuminator LI-0XXXA-005K-AD-0A0
Date：2022-01-14
Page view：
|
Features
-
Motorized beam angle zooming
-
Illumination over 5000m range
-
High reliability, lifetime up to 25000hrs
-
Compact, easy to integrate
-
RS232, RS485, TTL interface optional
-
Negligible off-axis divergence,easy to collimate with camera lens
-
Uniform beam intensity, speckle free
-
Operating state memory
-
CE certificate
-
Predefining position
-
Low heat, high efficiency
Applications
-
Security surveillances
-
Automobile night vision (ADAS)
-
Machine vision
-
Gesture recognition
|
 |
PRODUCT IDENTIFY
|
Part Number |
Description |
|
LI-0808A-005K-AD-0A0 / LI-0915A-005K-AD-0A0 |
5 Km VCSEL Array Laser Illuminator |
CODE RULES
Description
This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big dynamic beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic.
It can be widely used in video security surveillances, machining vision, gesture recognition, display control, laser medicine and military applications. This illuminator is compatible with major lens and cameras, integrated with the protocols of Pelco D. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via serial port, and users can call the instruction to operate conveniently in use. Due to uniform power intensity of beam, users can obtain high quality video and easily recognize the features inside.
Specifications
Mechanical drawing
Electrical interface (RS422)

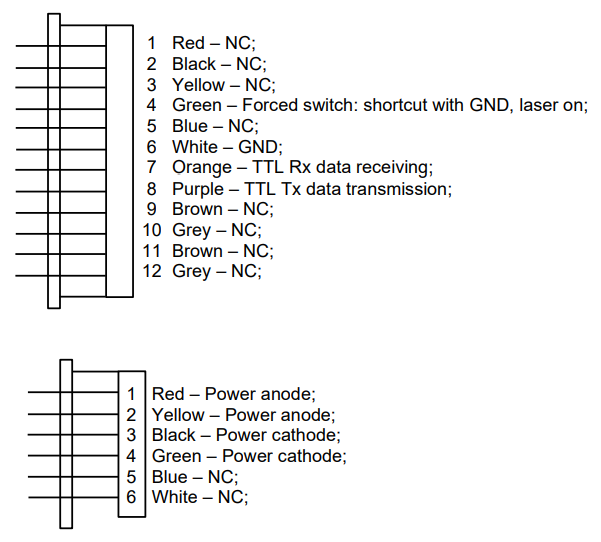

Other interfaces
Laser safety
The output power of this module is classified as Class IV, one can refer to IEC 60825- 1:2014 “Laser Product Safety: Part 1: Devices classification, requirements and user’s manual”.
