IR VCSEL Array Laser Illuminator LI-0XXXA-X00M-01-70

Date:2022-01-14 Page view:

Features
  • High performance VCSEL chip, no attenuation
  • High efficiency up to 40%@25°C, >35%@50°C
  • VCSEL chip, wide operating temperature -40~85°C
  • VCSEL array chip with large emission area, good safety
  • Motorized large dynamic beam angle zooming
  • Illumination over 500m range
  • High reliability, lifetime up to 50,000hrs
  • Compact, easy to integrate
  • RS232, RS485, TTL interface optional
  • Negligible off-axis divergence, easy to collimate with camera lens
  • Uniform beam intensity, speckle free
  • Operating state memory
  • CE certified
  • Predefining position
  • Low heat, high efficiency

Applications
  • Security surveillances
  • Machine vision
  • Gesture recognition
  • Display
  • Medical applications
  • Military applications

PRODUCT IDENTIFY
Part Number  Description
LI-0XXXA-X00M-01-70  IR VCSEL Array Laser Illuminator

CODE RULES
Description
    This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big dynamic beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in video security surveillances, machining vision, gesture recognition, display control, laser medicine and military applications.
    This illuminator is compatible with major lens and cameras, integrated with the protocols of Pelco D. It is easy for users to implement the illuminator. Simultaneously, position can be preset via serial port, and users can call the instruction to operate conveniently in use. Due to uniform power intensity of beam, users can obtain high quality video and easily recognize the features inside.

Specifications

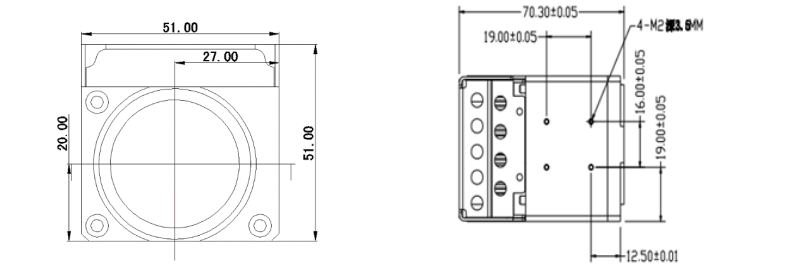

Mechanical drawing
Electrical interface

Laser safety
    The output power of this module is classified as Class IV, one can refer to IEC 60825-
1:2014 “Laser Product Safety: Part 1: Devices classification, requirements and user’s manual”.

Copyright statement
   This documentation is wholly owned by Brightlaser Limited. Anyone, any
organization or third part may not partly or wholly copy, reproach the documentation.
Otherwise, anyone can be prosecuted.

Revision history
