Laser Module

  • niform and detail-oriented
  • Collimated beam
  • Long distance indication
  • Manual beam spot adjustment
  • High power conversion efficiency
  • Low thermal resistant
  • Teaching and scene guidance
  • Infrastructure alignment
  • Lighting for stage performance
  • Medical and beauty application
  • Indication and positioning

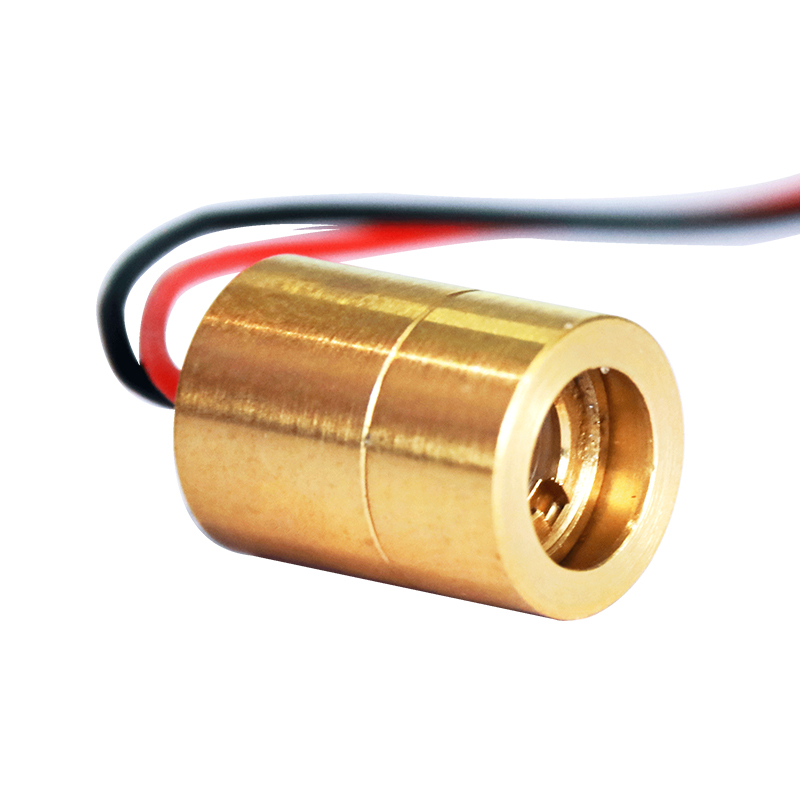

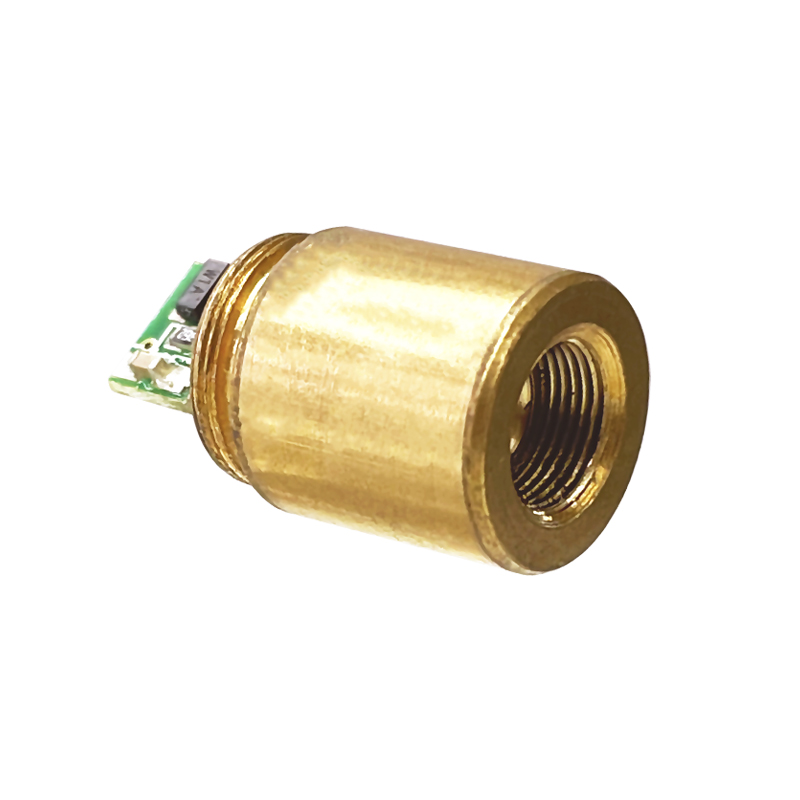

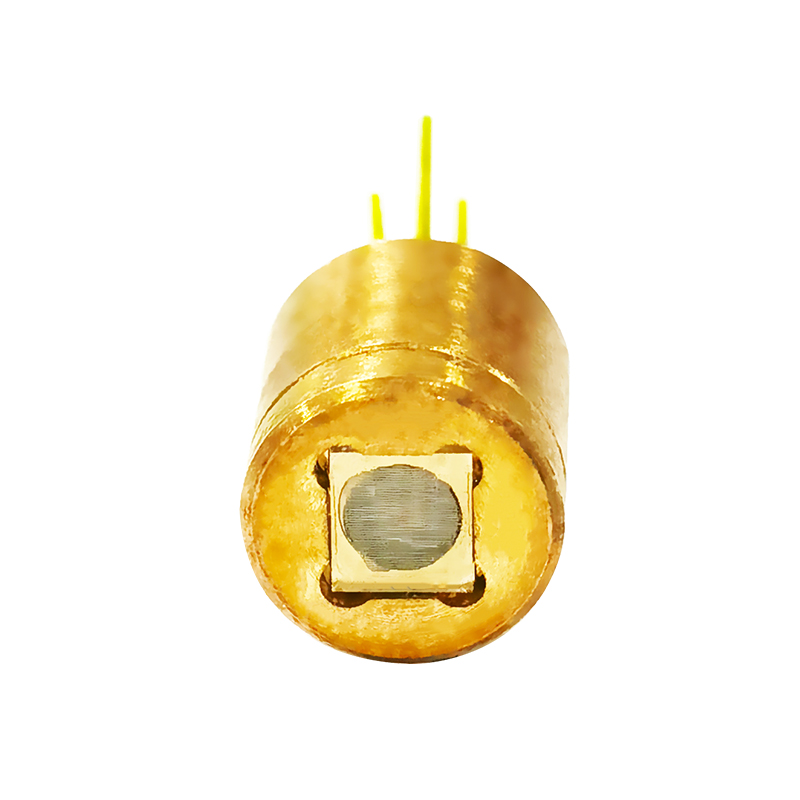

    This product VM-0450C-026M-AD-0A0 is integrated with imported and high-quality laser diodes and is shielding with copper for better heat dissipation.
   Compared with traditional frequency doubles laser and LED, it enables to provide a higher peak power and lower power consumption, subtle wavelength shift with temperature and good reliability. It provides narrow emission angle without optical and thermal compensation, which allow various operation environments.
    This product with laser diodes with small-sized, light, low price, long life,low power consumption, fast frequencyresponse and manual beam spot adjustment.
It can be applied to infrastructure alignment, positioning, indication, inspection, machine vision and other fields for ideal visible laser source.

Part Number  Description
VM-0450C-026M-AD-0A0 450nm Class 3B Laser module

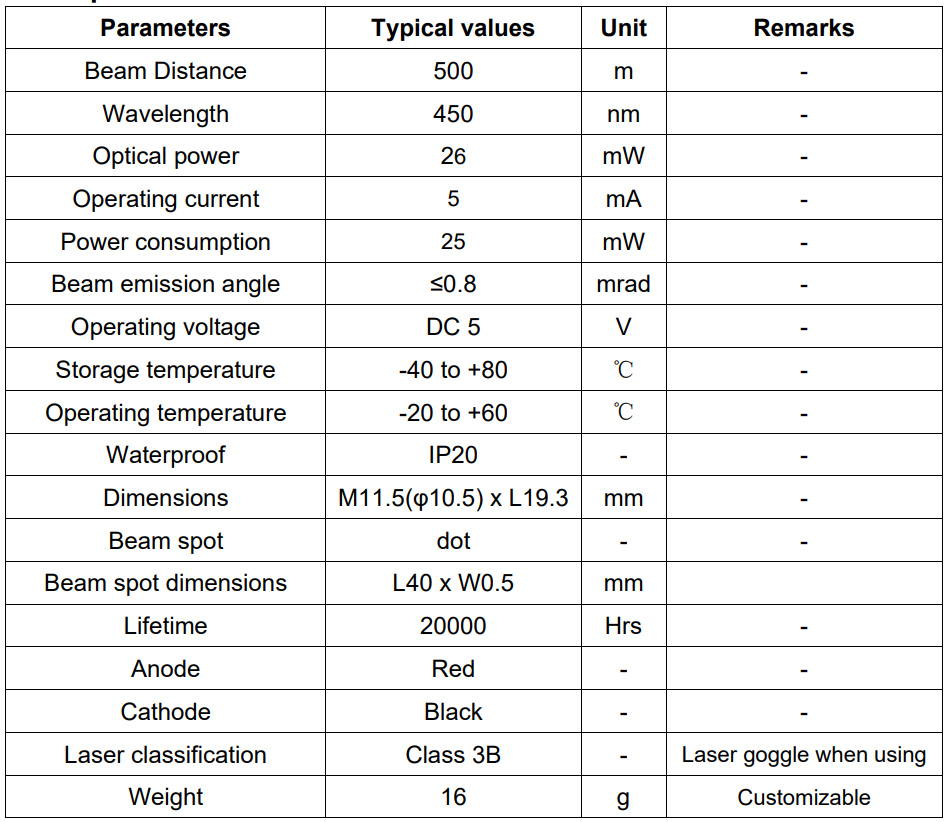

I. Specifications

II. Mechanic schematic

III. Laser Product Safety
    The output power of this module is classified as class 3B, one can refer to IEC 60825-1:2014《Laser Product Safety: Part 1:Devices classification, requirements and user’s Manual》.
IV. Copyright Statement
    This documentation is wholly owned by Brightlaser.,Ltd. Any one, any organization or third part may not partly or wholly copy, reproach the documentation. Otherwise, anyone can be prosecuted.
V. Revision History
