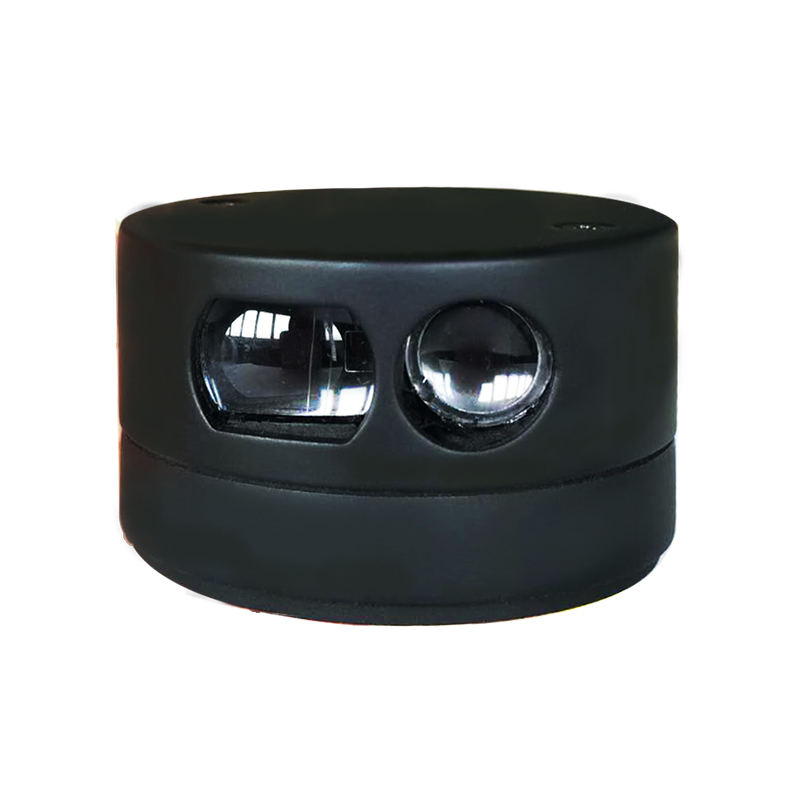

Range Finder Sensor LS-0940G-007M-2m-xA4

Date: 2021-10-14 14:52Page view:

Features

High precision and small size
High measurement frequency
VCSEL source
Real-time measurement
Friendly interface
High reliability

Applications

Positioning
Smart sensor
Obstacle detection
Anti-collision warning
Flow monitoring

PRODUCT IDENTIFY

Part Number	Description
LS-0940G-007M-2m-XA4	940nm VCSEL, TOF, single spot measurement, eye safety

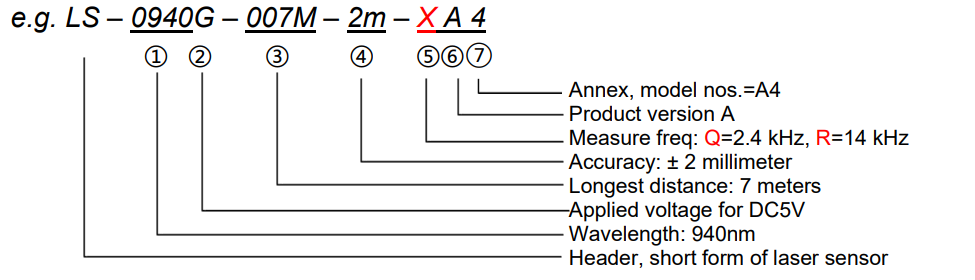

CODE RULES

Description

This laser distance sensor of A4 series adopts high performance and high pulse power VCSEL device, with high-quality optical design and high-performance and highprecision timing circuit design. The measurement frequency is adjustable, up to 14kHz; using 940nm high-power pulsed VCSEL laser, it is invisible to the naked eye and has strong anti-interference ability. It can be widely used for distance measurement, AI sensing and other fields

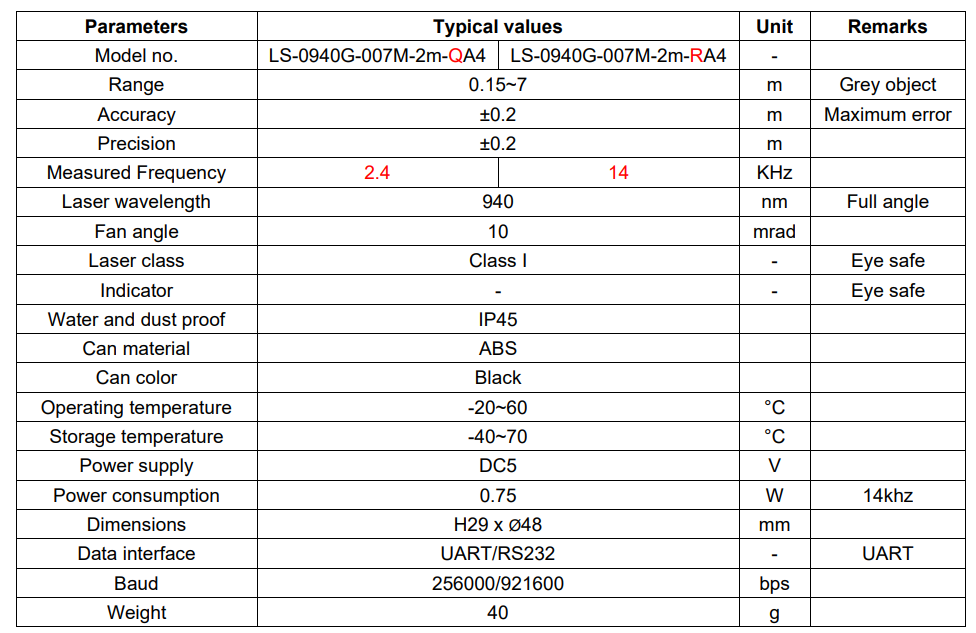

Specifications

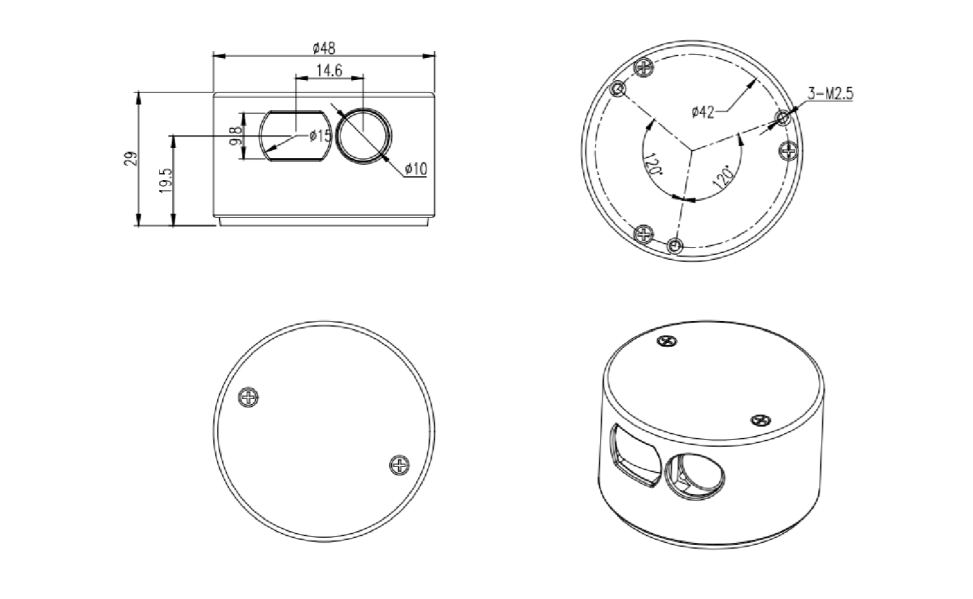

Mechanical drawing

Laser safety

The laser used in this device is classified as Class IIB, which is eye-safe one. Please refer to GB7247.1-2016 / IEC60825-1:2014 “Laser Product Safety: Part 1: Devices classifications, requirements and user’s manual”.

Copyright
This product documentation is reserved to Brightlaser Limited. Any person or any third party cannot partly or wholly copy without the permission from Brightlaser Limited. Otherwise one may be prosecuted.

Revision history
