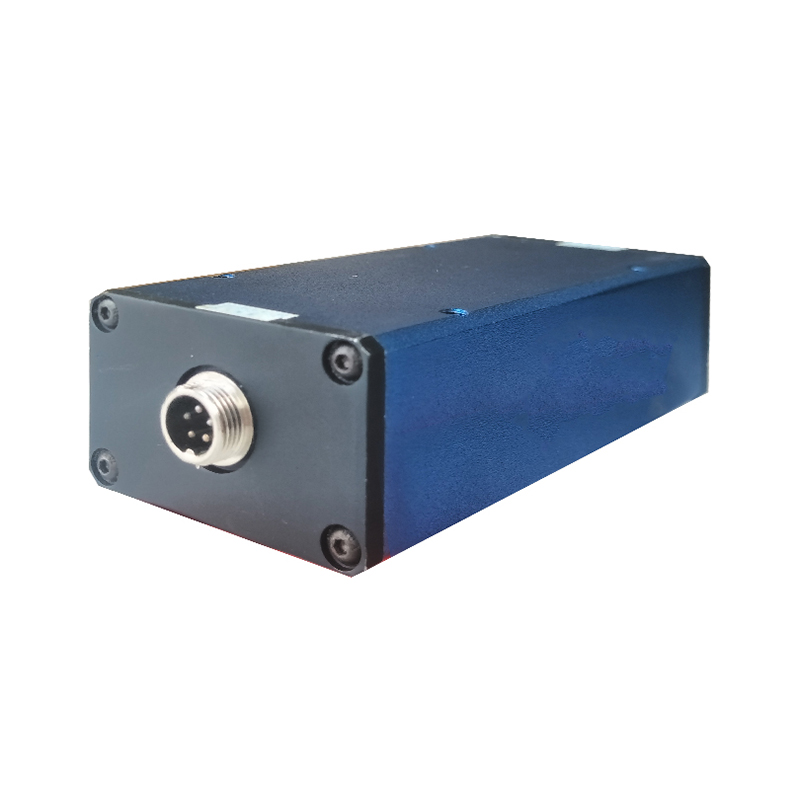

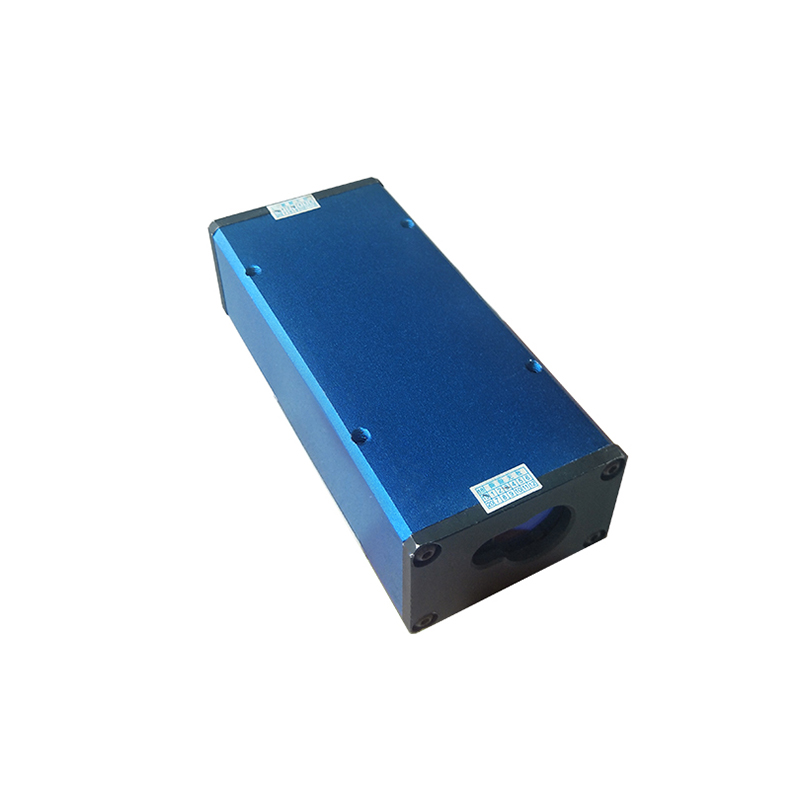

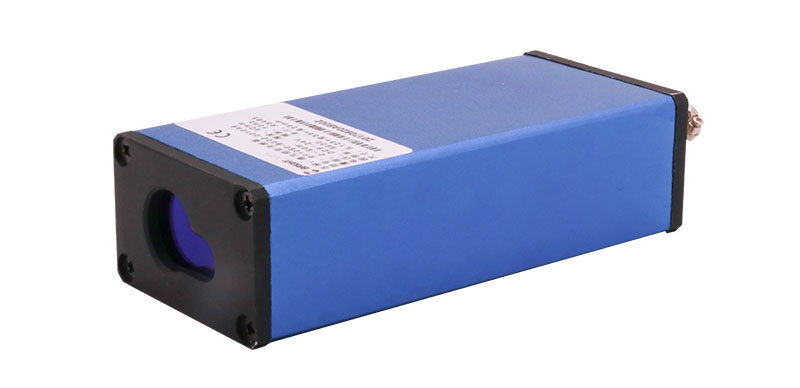

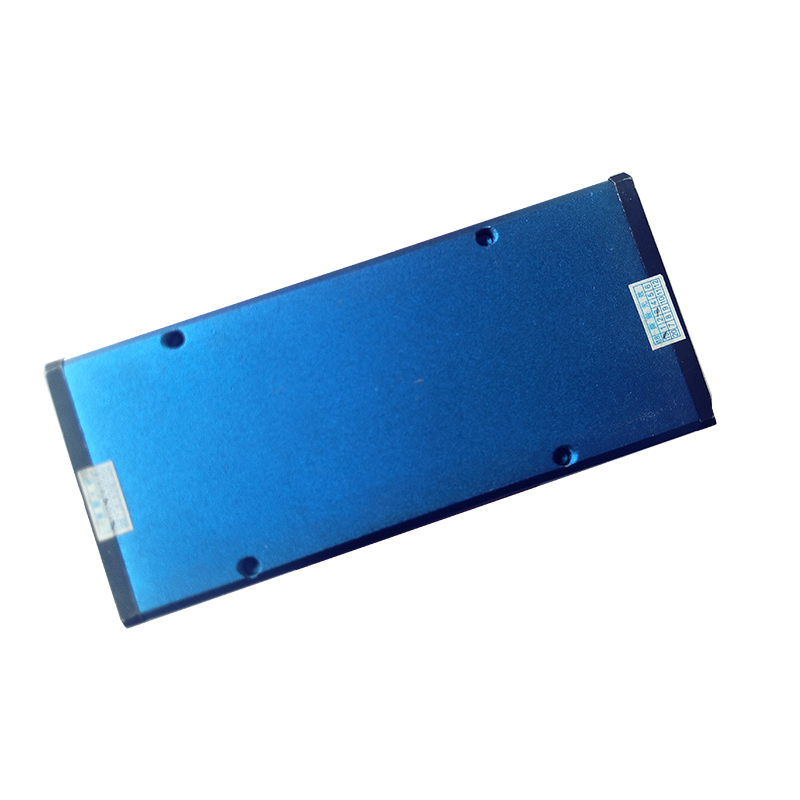

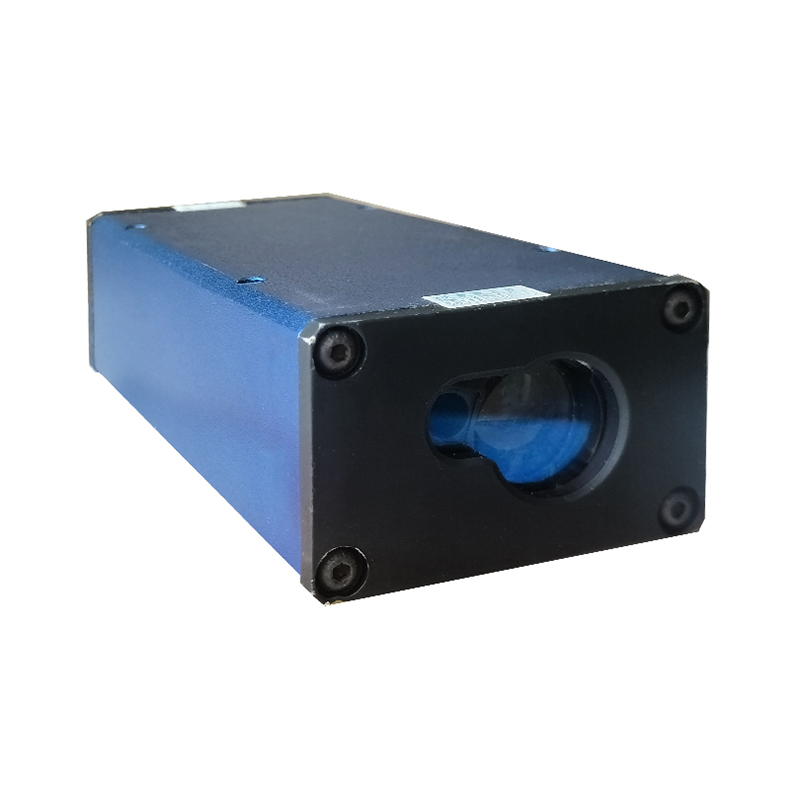

Range Finder Sensor LS-06XXC-0X0M-Am-EA6

Date: 2021-10-14 14:49Page view:


Features
  •  High precision
  •  High measurement frequency
  •  IP67 waterproof protection
  •  Good real-time performance
  •  Friendly interface
  •  Small size
  •  High reliability
Applications
  •  Traffic light control
  •  Positioning sensing
  •  Electrical cable monitoring
  •  Dam deformation monitoring
  •  Hill slope monitoring
  •  Range monitoring
  •  Traffic flow monitoring
  •  Stuff position monitoring
Description
    A6 is high-performance range finder sensors, integrated with excellent optics and high accuracy timer. It can measure up to 5-10Hz and can give out the real-time distance between range finder and the object. It is easy to integrate due to its friendly interfaces and compact size.

PRODUCT IDENTIFY

Part Number Description
LS-06XXC-0X0M-Am-EA6 635nm VCSEL, Range finder sensor, 0.15~60m, 5/10Hz

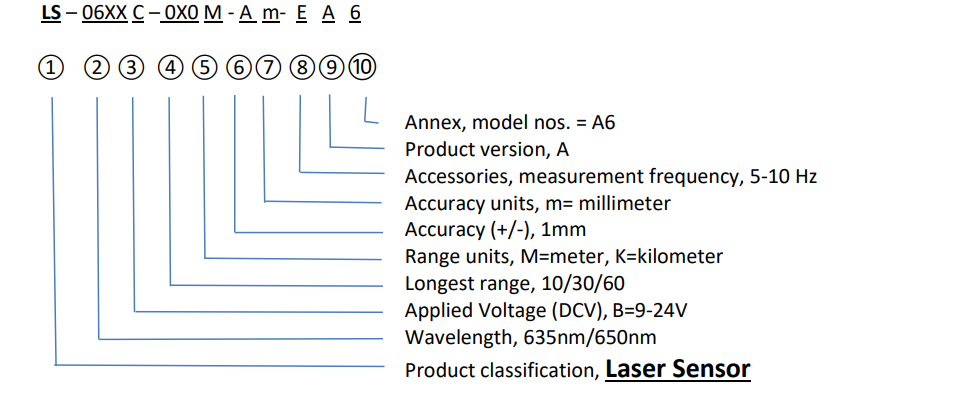

CODE RULES

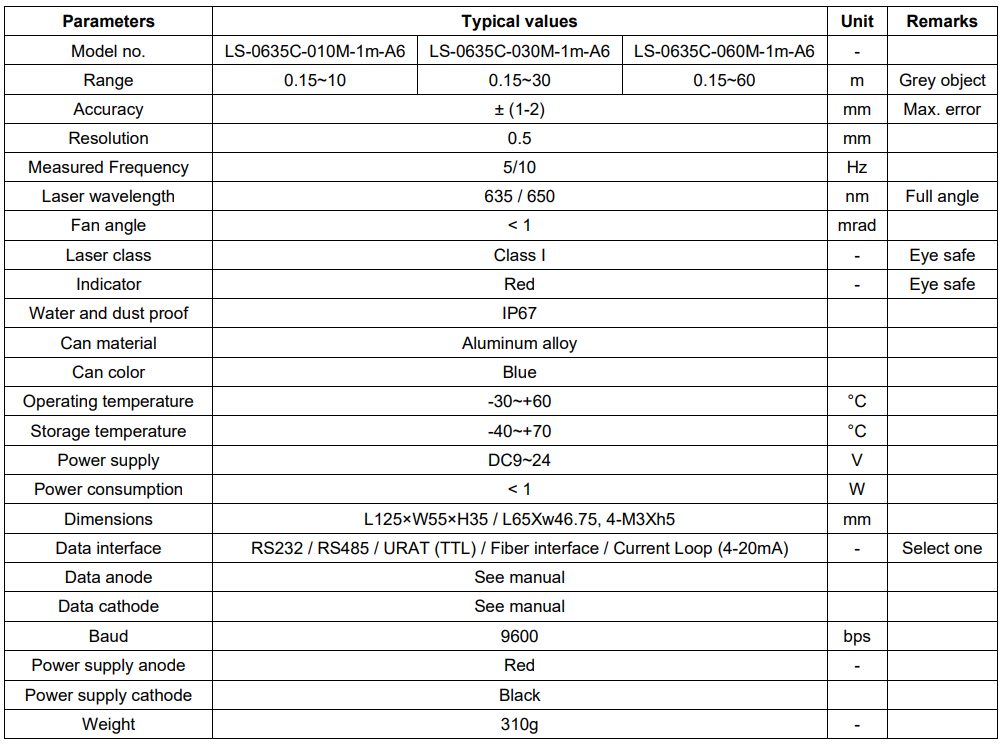

Specifications

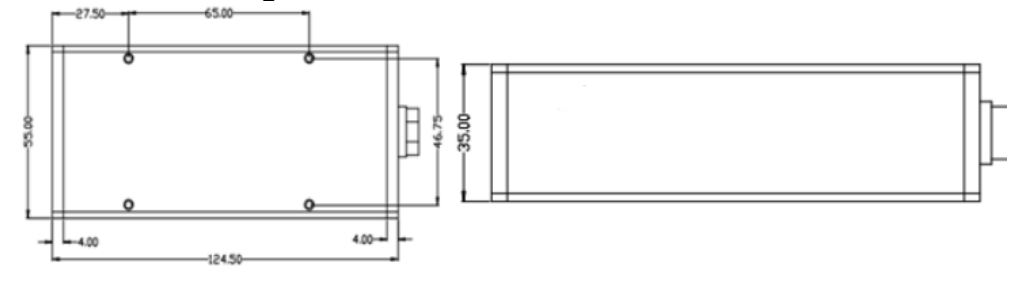

Mechanical drawing

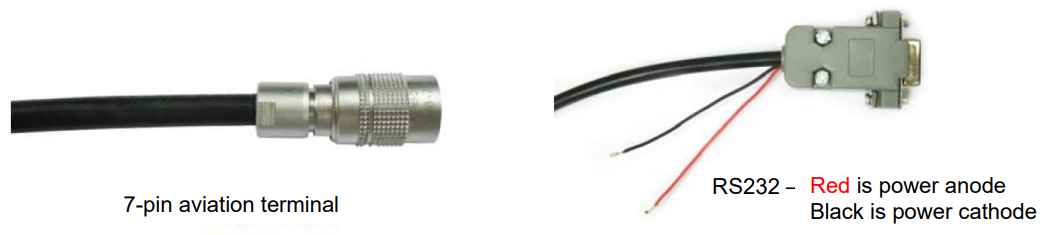

Electronic and electric connections


Notes:
    1. Please read the manual carefully before operating;
    2. Please connect each cable correctly according to the definition in the manual;
    3. Please check the voltage and power supply before operating;
   4. Please check the data interface;
   5. Don’t immerse the device into water in spite of its water and dust proof;

Laser safety
      The laser used in this device is classified as Class I, which is eye-safe one. Please refer
to GB7247.1-2016 / IEC60825-1:2014 “Laser Product Safety: Part 1: Devices classifications,
requirements and user’s manual”.

Copyright
     This product documentation is reserved to Brightlaser Limited. Any person or any third
party cannot partly or wholly copy without the permission from Brightlaser Limited. Otherwise
one may be prosecuted.

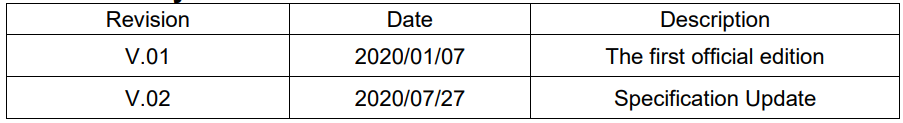

Revision history
