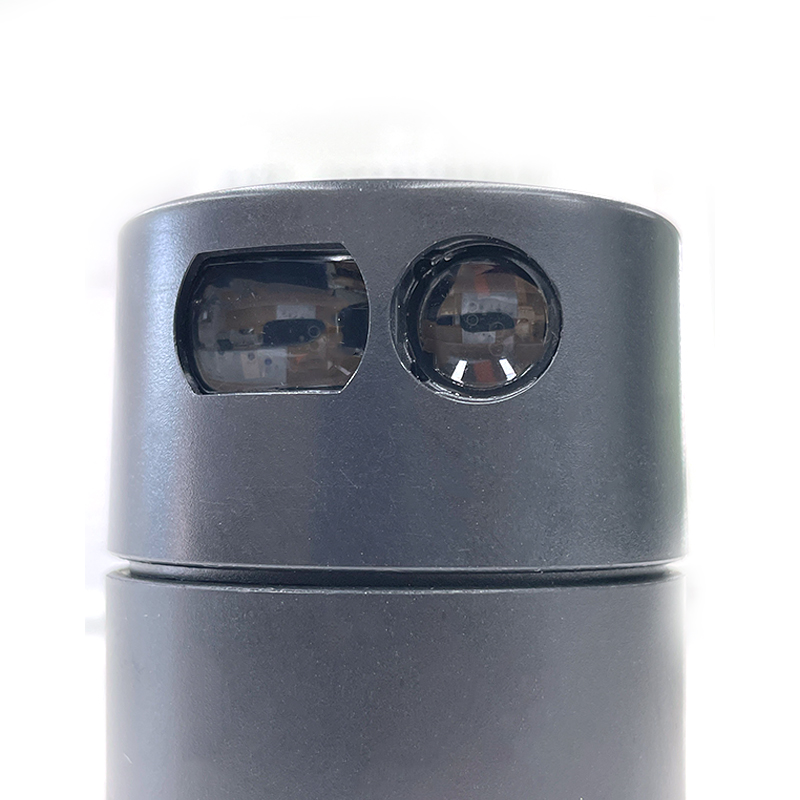

Single Line Scanning Lidar LS-0940H-00XM-AC-FX9
Date: 2021-10-14 14:37Page view:
|
FEATURES
-
360° scanning lidar with high precision
-
Pulsed VCSEL source, excellent performance
-
High measurement frequency, up to 14kHz
-
Strong resistance to ambient light interference
-
Compactness
-
High reliability
|
APPLICATIONS
-
Sweeper navigation and obstacle avoidance
-
Environmental scanning and 3D modelling
-
Obstacle detection and evasion of security
-
Regional security
-
Robot navigation
-
Vehicle ADAS
|
Description
B1 series LiDAR adopts independent intellectual DTOF technology and high-performance high-pulse power VCSEL devices and high-quality optical design, advanced optomagnetic design and high-performance, high-precision timing circuit, high measurement frequency, small size, and realization of 360° two-dimensional scanning of distance; the infrared high-power pulsed VCSEL laser is used, which is invisible to the naked eye and safe for the human eye, and has strong antiinterference ability. It can be widely used in sweeper/robot navigation and obstacle avoidance. |
 |
|
Part Number |
Description |
|
LS-0940H-00XM-AC-FX9 |
940nm VCSEL Single Line LiDAR, DTOF, up to 4m/7m, 5-20Hz |
PRODUCT IDENTIFY

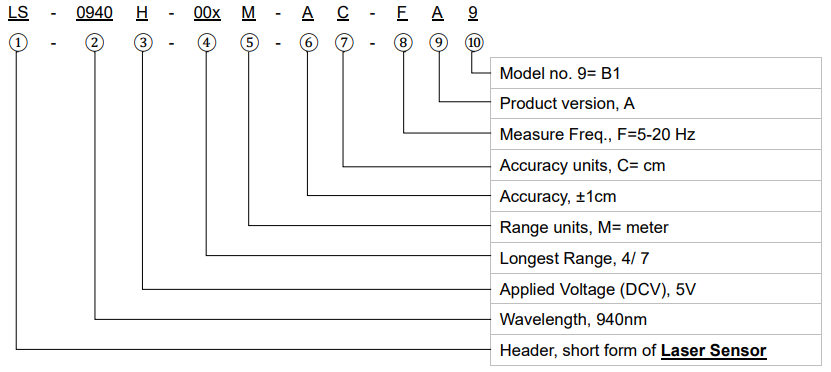

Code Rules

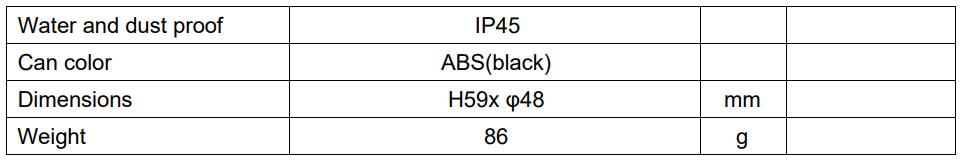

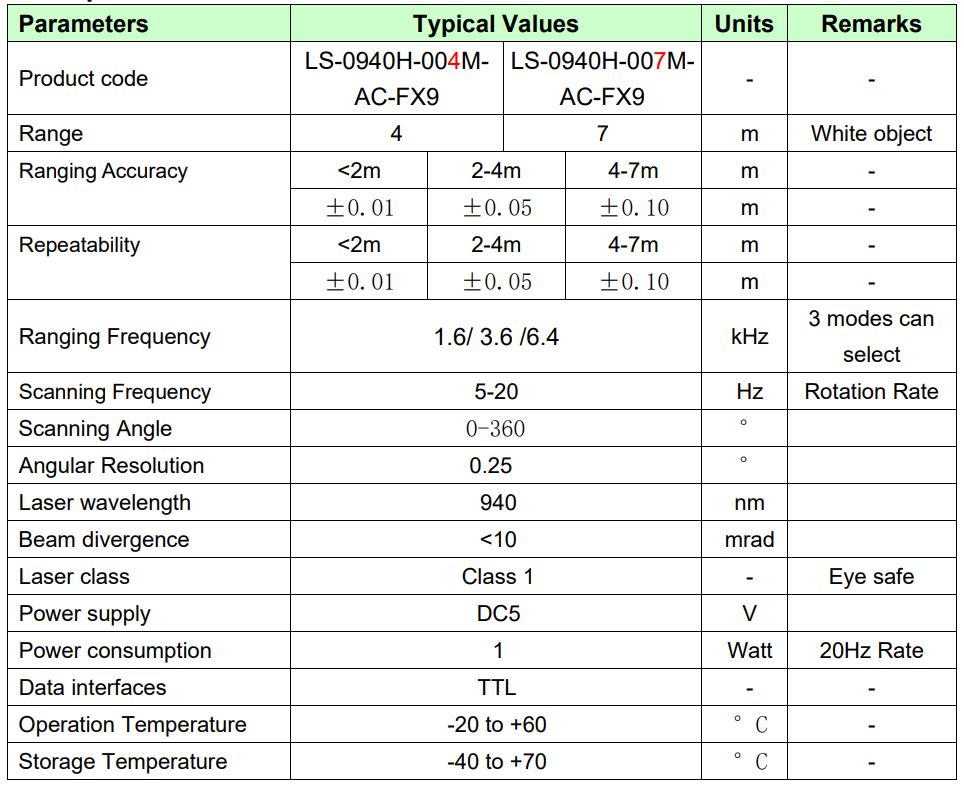

I. Specifications

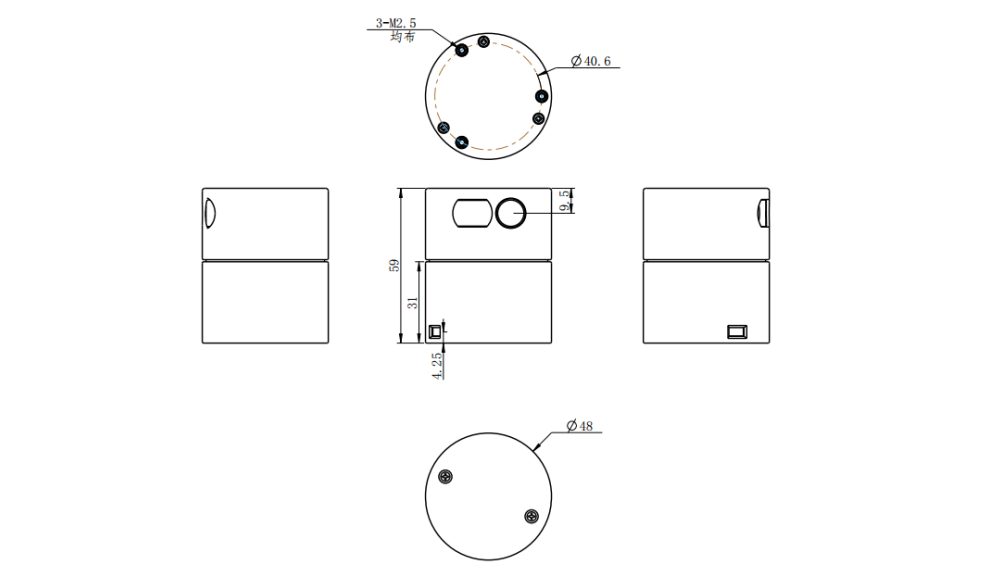

II. Mechanical Schematics
III. Laser Safety
The laser in the device used is Class 1, which is eye-safe one. Please refer to GB7247.1-2016/IEC 60825-1:2014 《 Laser products safety: Part I: Devices classifications, Requirements, and user’s manual》.
IV. Copyright
This product documentation is reserved to Brightlaser. Any person or any third part cannot partly or whole copy without the permission from Brightlaser. Otherwise one may be prosecuted. V. Revision History
Note: Brightlaser reserves the right to make modification at any time due to improved design from time to time, the merit behind is to supply the best product possible.
