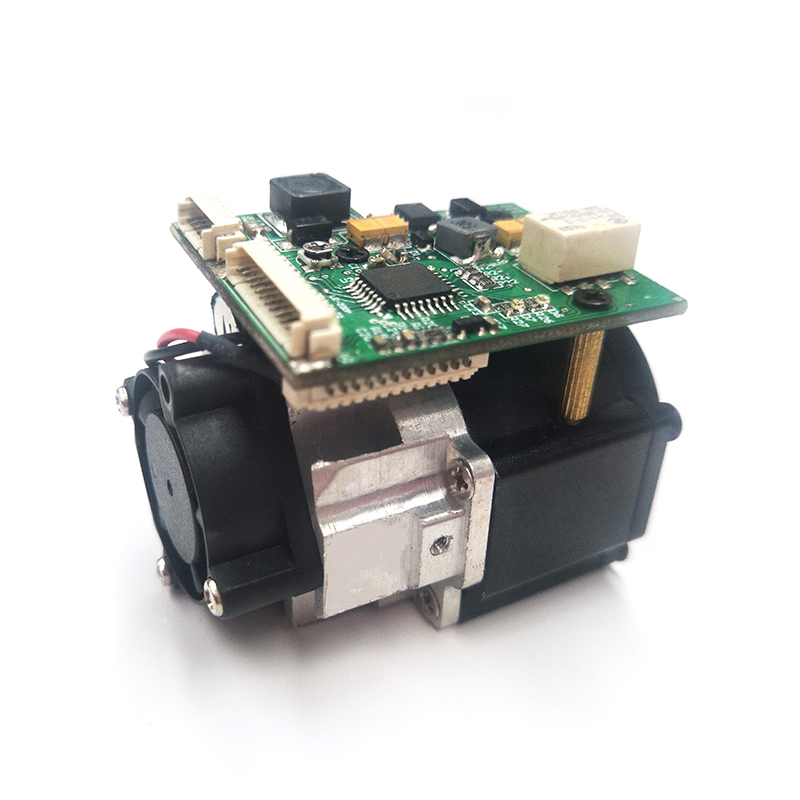

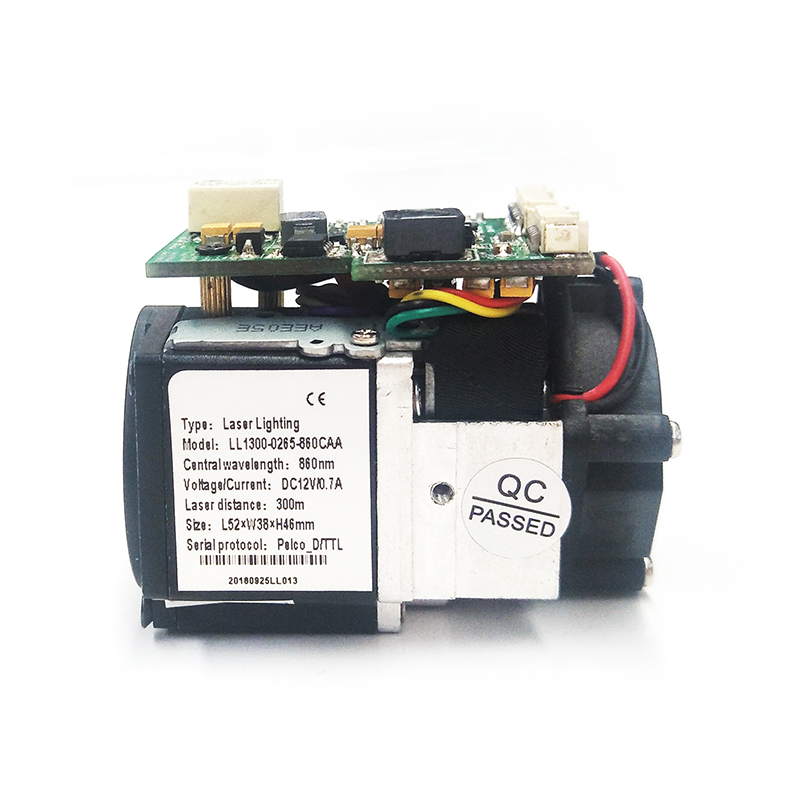

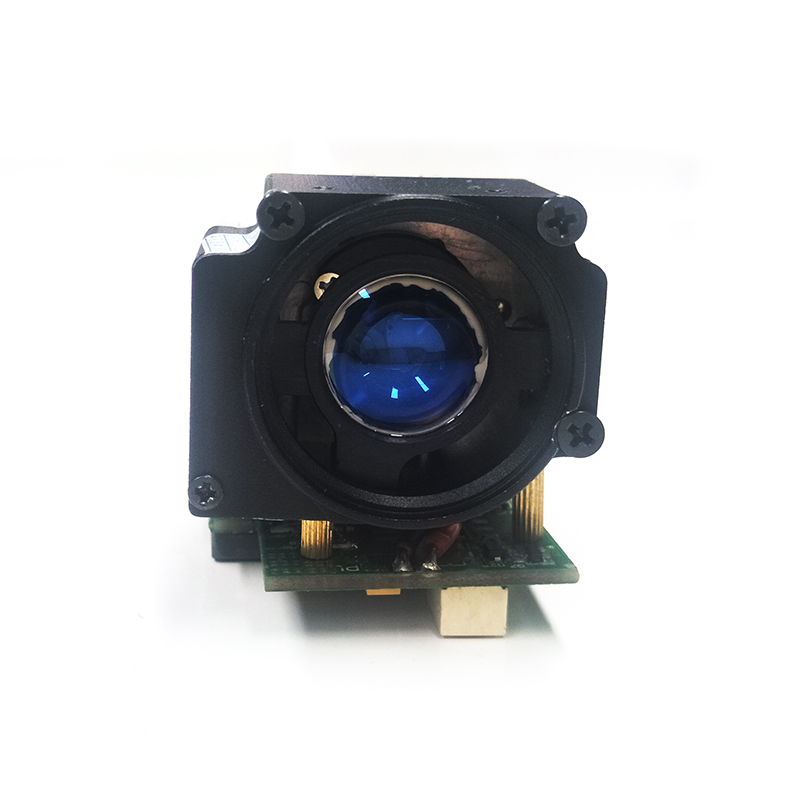

300m VCSEL Array Laser Illuminator LI-0860A-300M-02-65 / LI-0860M-300M-02-65

300m VCSEL Array Laser Illuminator
LI-0860A-300M-02-65 / LI-0860M-300M-02-65

Features High performance VCSEL chip, no attenuation High efficiency up to 40%@25°C, >35%@50°C VCSEL chip, wide operating temperature -40~85°C VCSEL array chip with large emission area, good safety Motorized large dynamic beam angle zooming Illumination over 300m range High reliability, lifetime up to 50,000hrs Compact, easy to integrate TTL interface Negligible off-axis divergence, easy to collimate with camera lens Uniform beam intensity, speckle free Operating state memory CE certified Predefining position Low heat, high efficiency   Applications Security surveillances Automobile night vision (ADAS) Machine vision Gesture recognition Display applications Military applications

Description

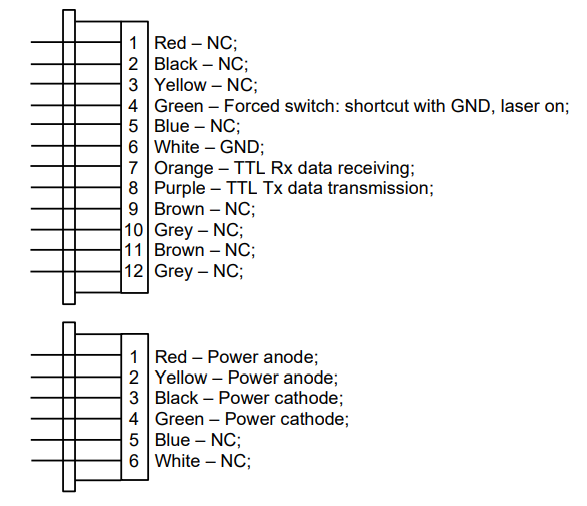

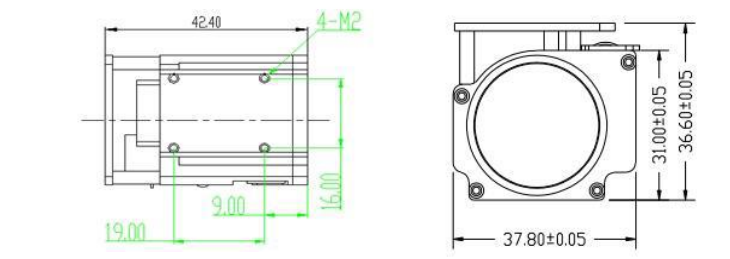

    This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big dynamic beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.

    This illuminator is compatible with major lens and cameras, integrated with the protocols of Pelco D. It is easy for users to implement the illuminator. Simultaneously, position can be preset via serial port, and users can call the instruction to operate conveniently in use. Due to uniform power intensity of beam, users can obtain high quality video and easily recognize the features inside.

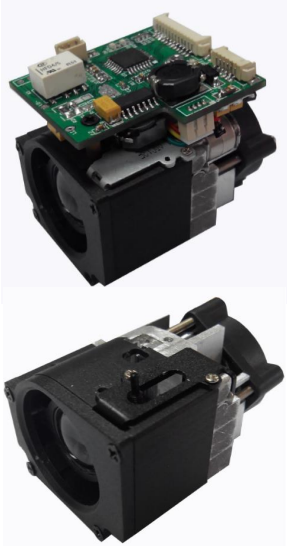

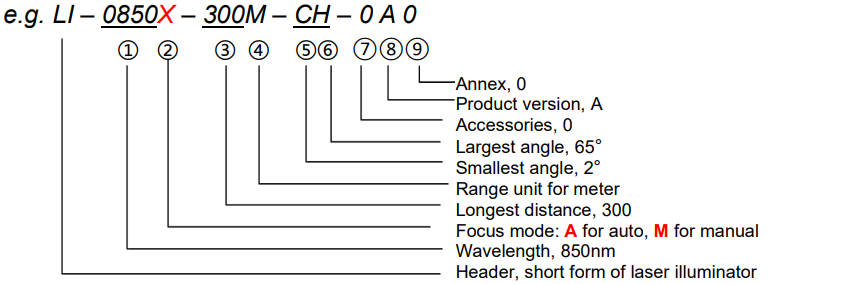

    This product has two models: LI-0860A-300M-02-65 is auto focus, LI-0860M-300M-02-65 is

manual focus. It is easy to match with auto and manual zoom lenses.

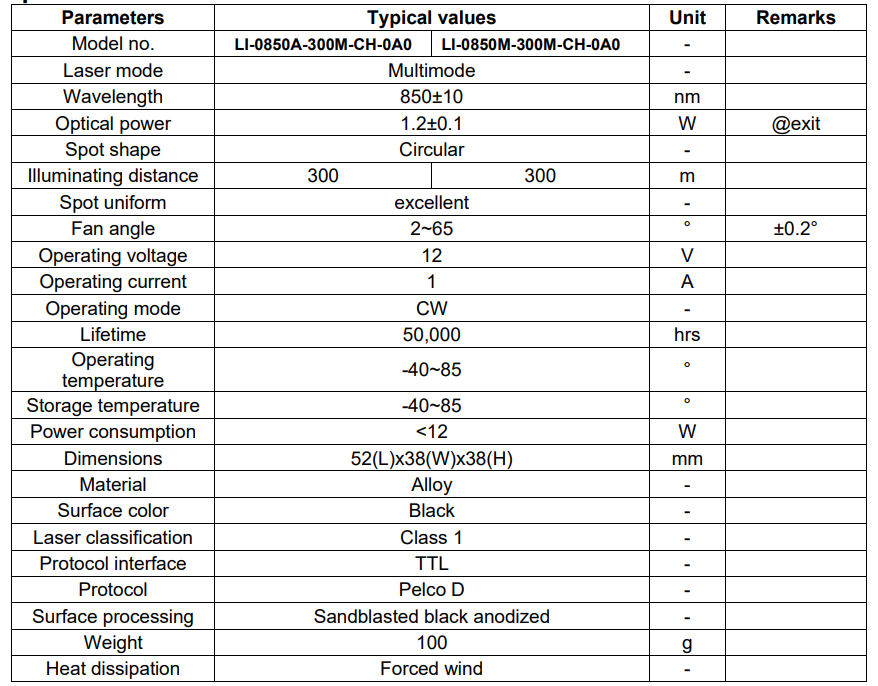

Specifications

Laser safety

    The output power of this module is classified as Class IV, one can refer to IEC 60825-1:2014 “Laser Product Safety: Part 1: Devices classification, requirements and user’s manual”.



Copyright statement

    This documentation is wholly owned by Brightlaser Limited. Anyone, any organization or third part may not partly or wholly copy, reproach the documentation.Otherwise, anyone can be prosecuted.

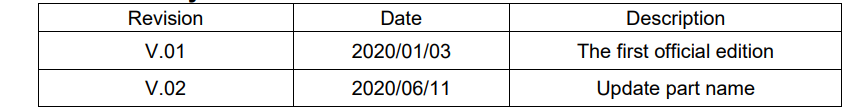

Revision history
