300m VCSEL Array Laser Illuminator LI-0860A-300M-CH-0A0 / LI-0850M-300M-CH-0A0
Date: 2021-10-14 15:49Page view:

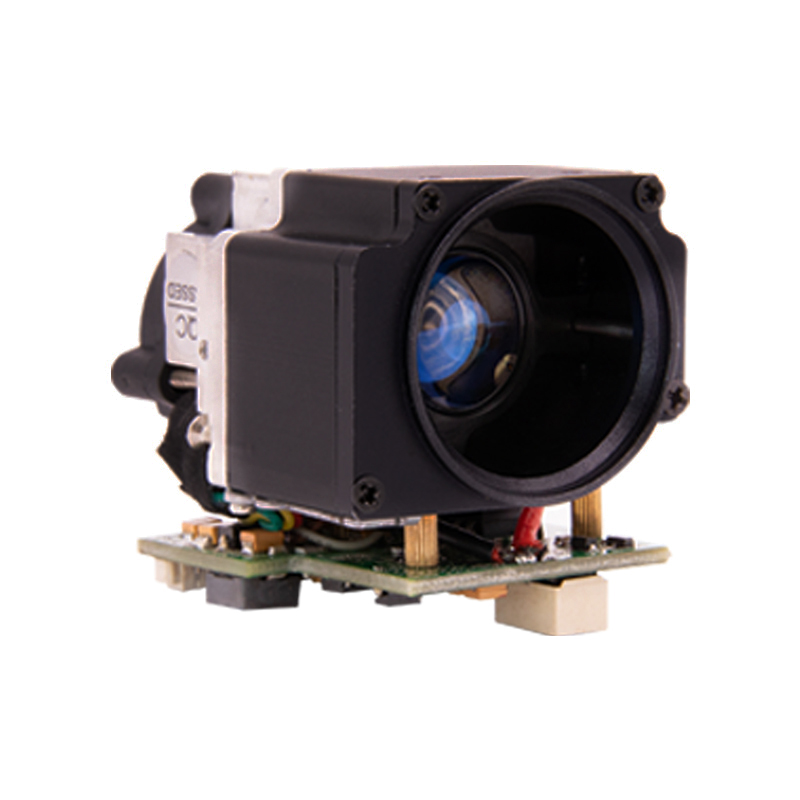

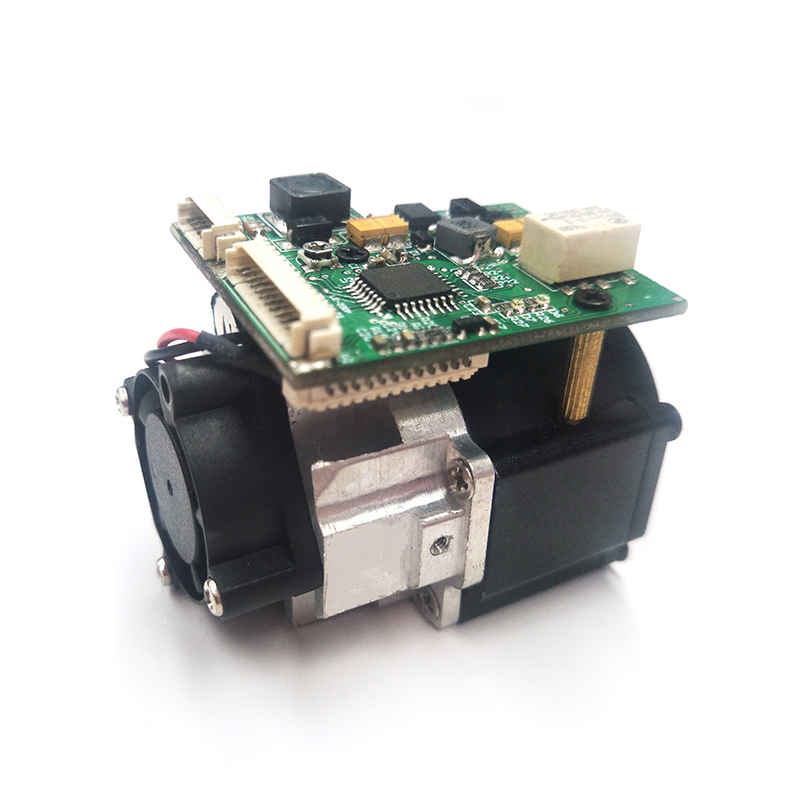

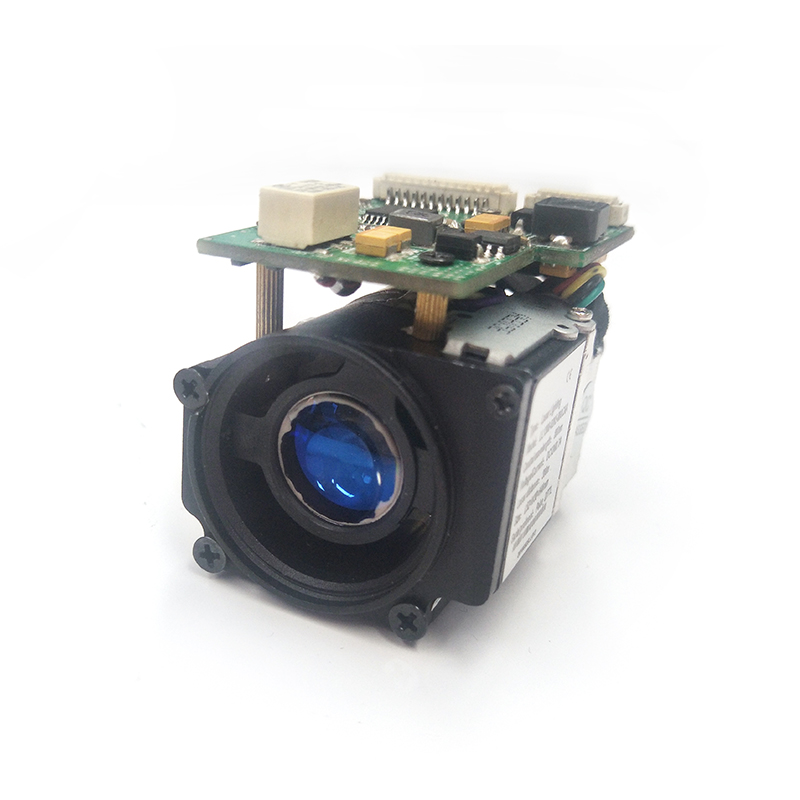

300m VCSEL Array Laser Illuminator
LI-0860A-300M-CH-0A0 / LI-0850M-300M-CH-0A0
|
Features
-
High performance VCSEL chip, no attenuation
-
High efficiency up to 40%@25°C, >35%@50°C
-
VCSEL chip, wide operating temperature -40~85°C
-
VCSEL array chip with large emission area, good safety
-
Motorized large dynamic beam angle zooming
-
Illumination over 300m range
-
High reliability, lifetime up to 50,000hrs
-
Compact, easy to integrate
-
TTL interface
-
Negligible off-axis divergence, easy to
-
collimate with camera lens
-
Uniform beam intensity, speckle free
-
Operating state memory
-
CE certified
-
Predefining position
-
Low heat, high efficiency
Applications
-
Security surveillances
-
Automobile night vision (ADAS)
-
Machine vision
-
Gesture recognition
-
Display applications
|
 |
PRODUCT IDENTIFY
|
Part Number |
Description |
|
LI-0850A-300M-CH-0A0 / LI-0850M-300M-CH-0A0 |
300m VCSEL Array Laser Illuminator |

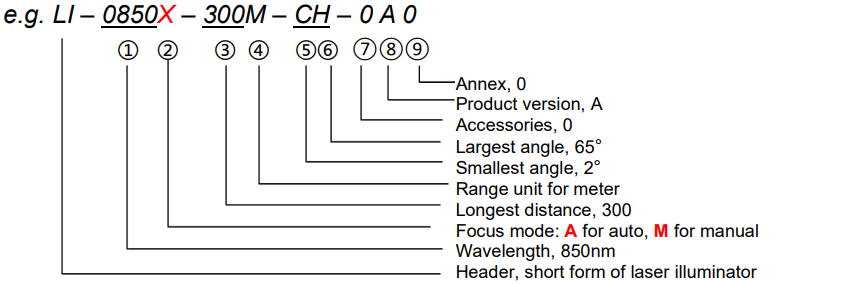

CODE RULES
Description
This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big dynamic beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
This illuminator is compatible with major lens and cameras, integrated with the protocols of Pelco D. It is easy for users to implement the illuminator. Simultaneously, position can be preset via serial port, and users can call the instruction to operate conveniently in use. Due to uniform power intensity of beam, users can obtain high quality video and easily recognize the features inside.

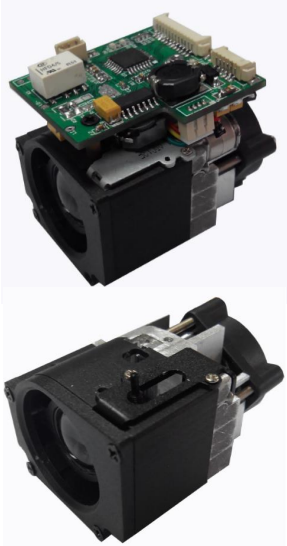

This product has two models: LI-0860A-300M-CH-0A0 is auto focus, LI-0860M-300M-CH-0A0 is manual focus. It is easy to match with auto and manual zoom lenses.

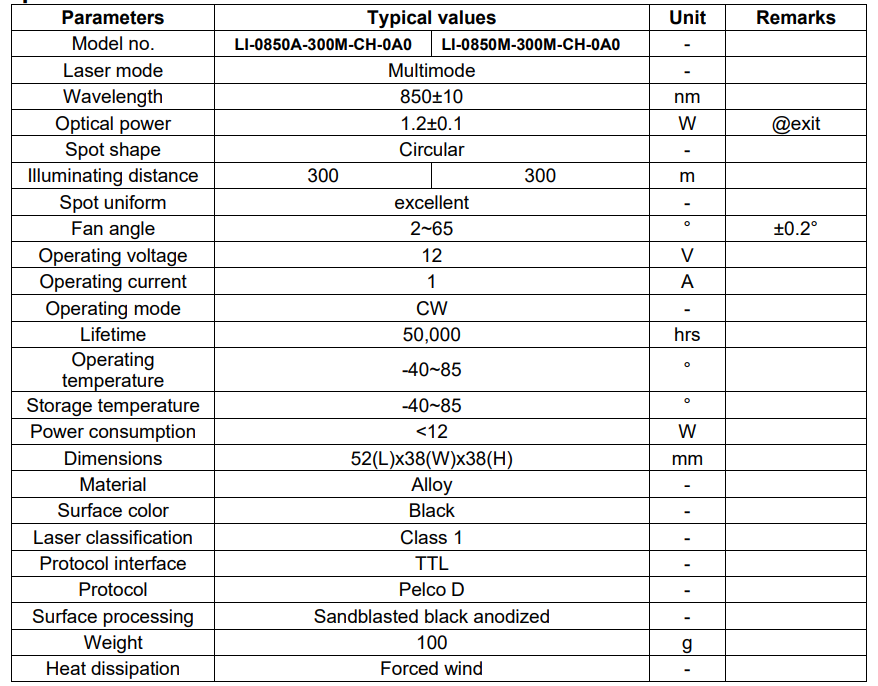

Specifications

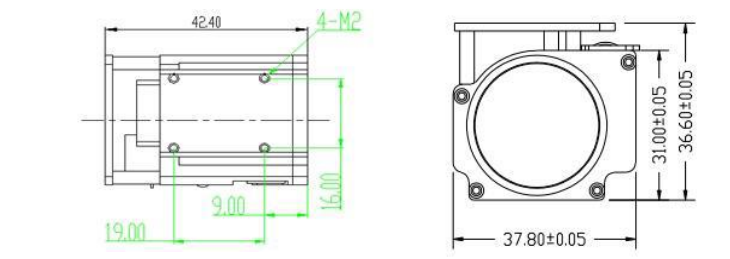

Mechanical drawing

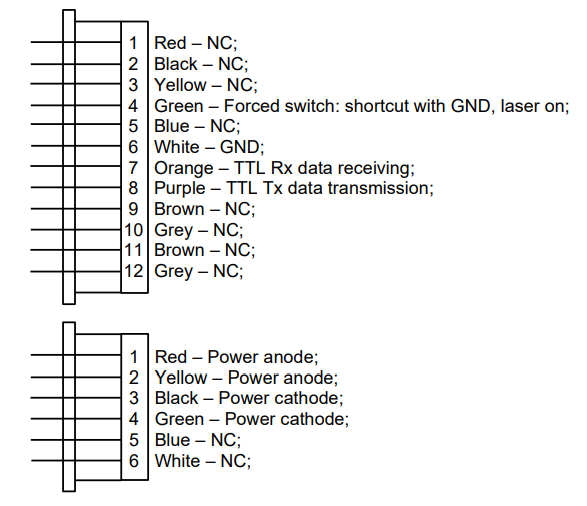

Electrical interface
Laser safety
The output power of this module is classified as Class IV, one can refer to IEC 60825-1:2014 “Laser Product Safety: Part 1: Devices classification, requirements and user’s manual”.
Copyright statement
This documentation is wholly owned by Brightlaser Limited. Anyone, any organization or third part may not partly or wholly copy, reproach the documentation. Otherwise, anyone can be prosecuted.

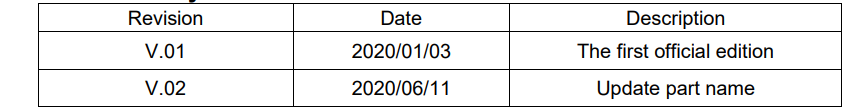

Revision history
**Brightlaser reserves the right to make modification at any time due to improved design from time to time, the merit behind is in order to supply the best product possible.
