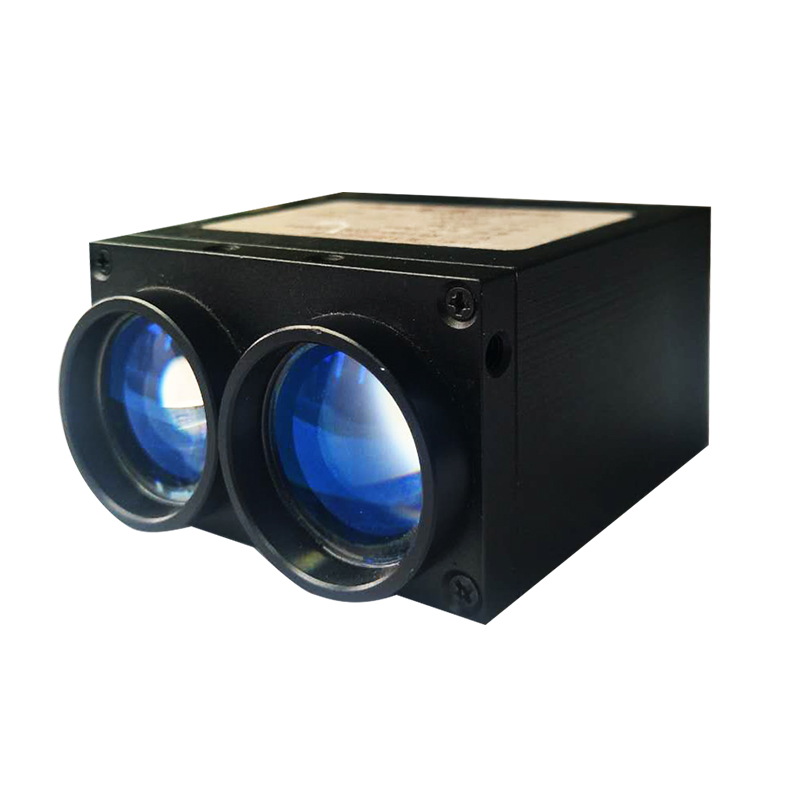

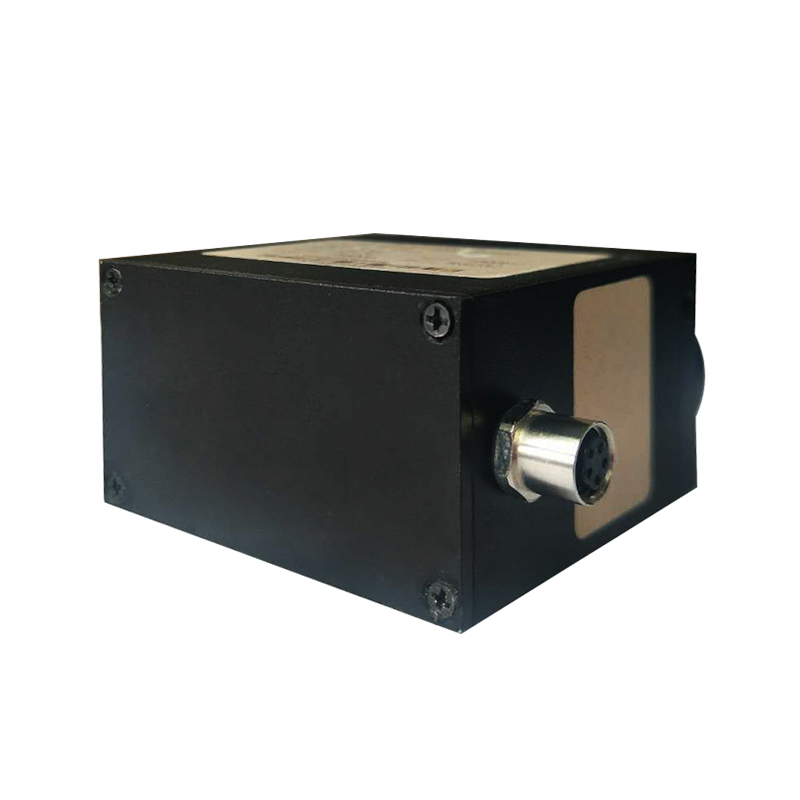

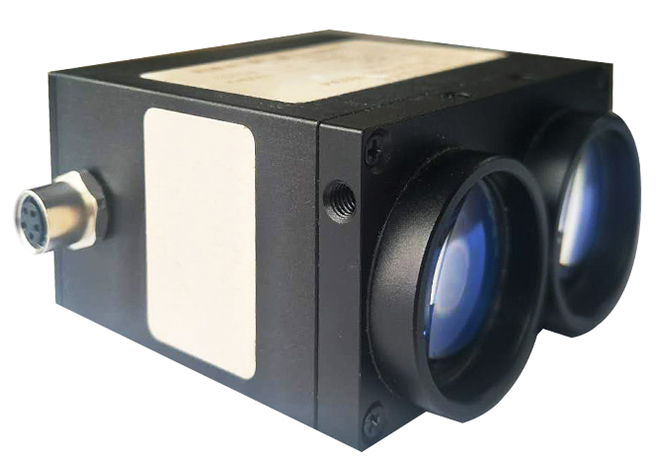

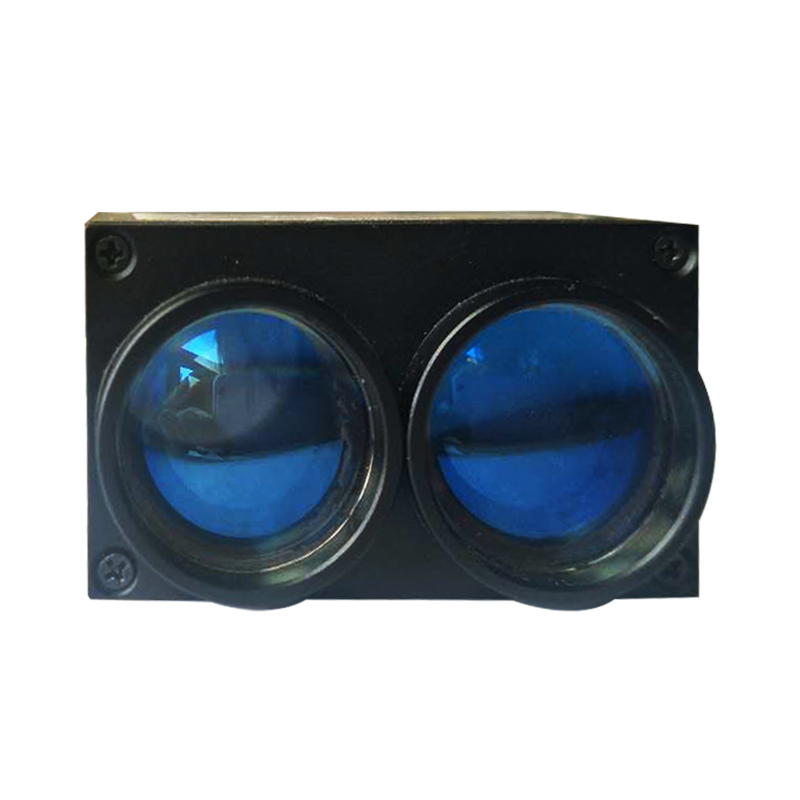

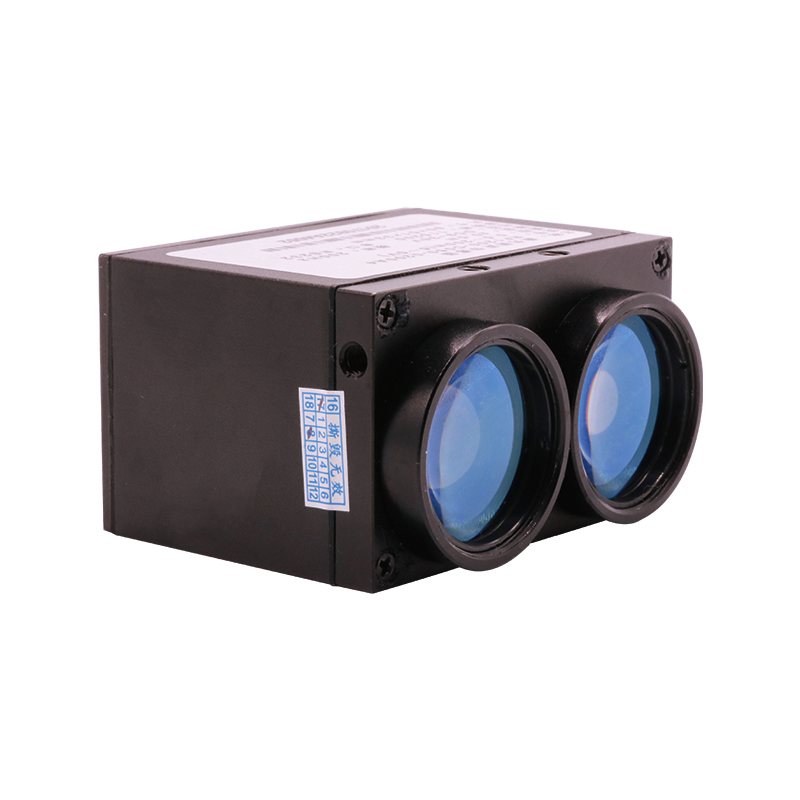

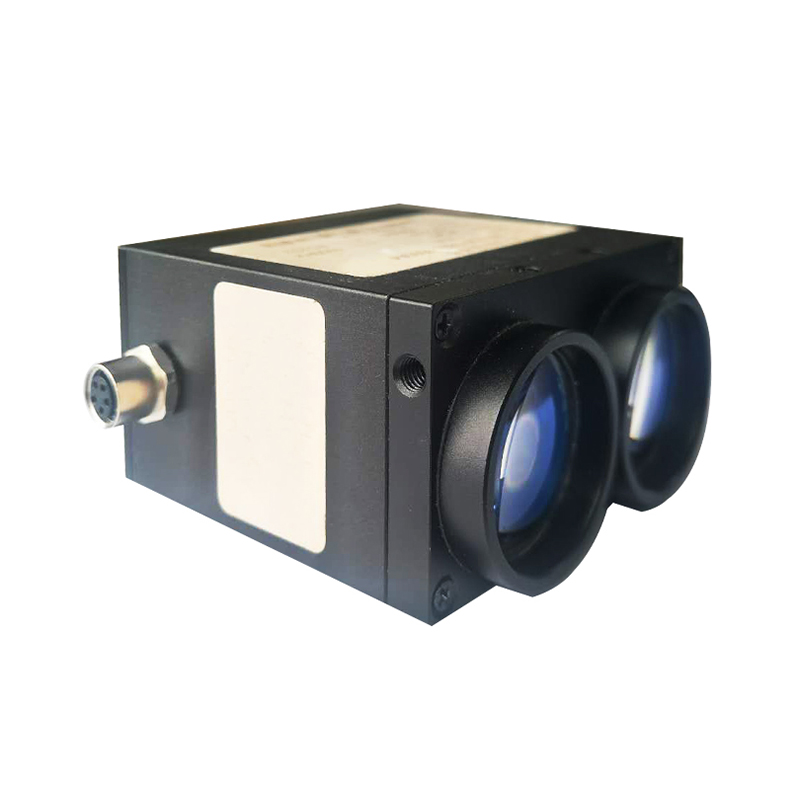

Laser Range Finder Sensor LS-0905D-150M-ED-XA4

Date: 2021-10-14 14:47Page view:


FEATURES
  • • High accuracy, long ranging
  • • High measure frequency, up to 1kHz
  • • Real time measurement
  • • Friendly and versatile interfaces
  • • Compactness
  • • High reliability
APPLICATIONS
  • • ADAS vehicle system
  • • Robot navigating system
  • • Traffic control system
  • • Industrial automation

Description
    A4 is the range finder sensor with highperformance and high measurement frequency,integrated with excellent optics design and high accuracy timer. It can measure up to 1000Hz stably and can give out the real-time distance between range finder and the object. It is easy to integrate due to its friendly interfaces and compact size. It is ideal for Vehicle ADAS system, robot navigation system, and smart traffic monitoring.

Part Number Description
LS-0905D-150M-ED-XA4 150m Range Finder Sensor, 200/1000Hz

PRODUCT IDENTIFY

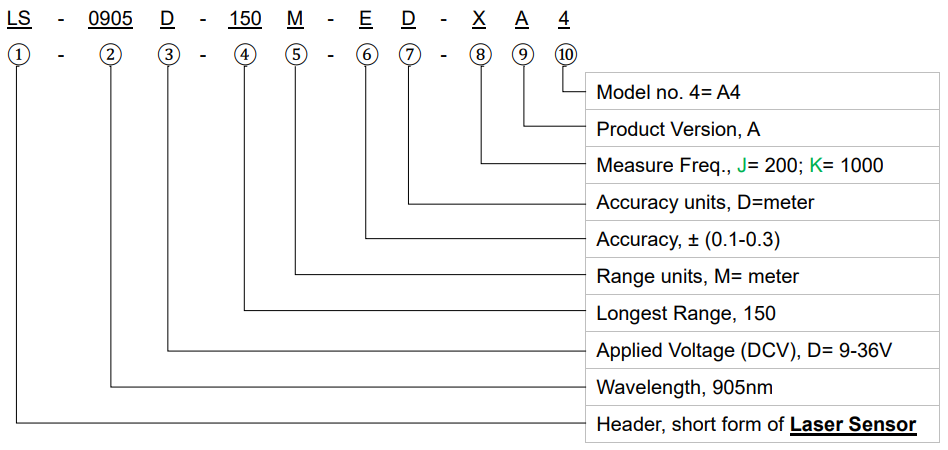

Code Rules

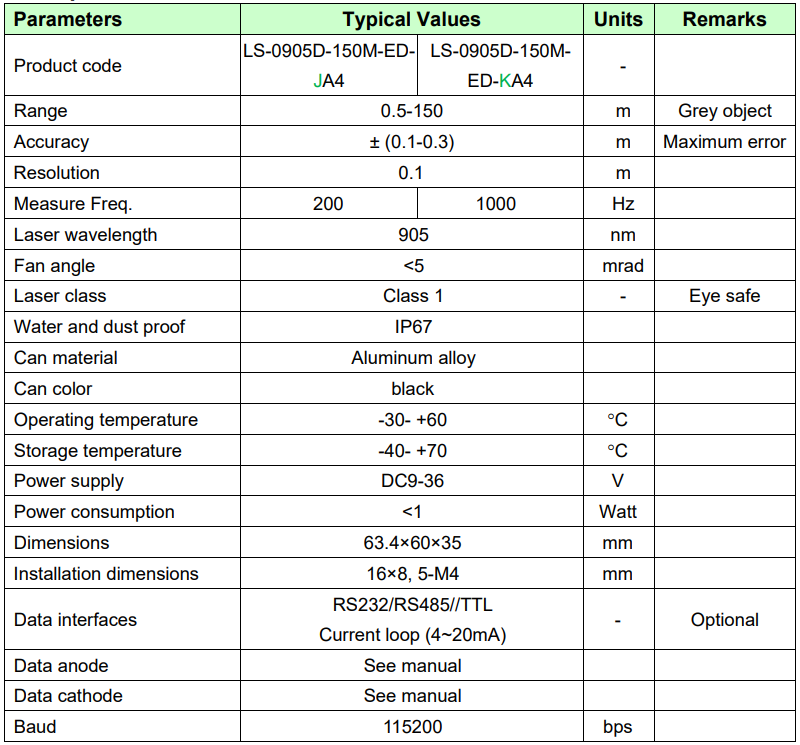

I. Specifications

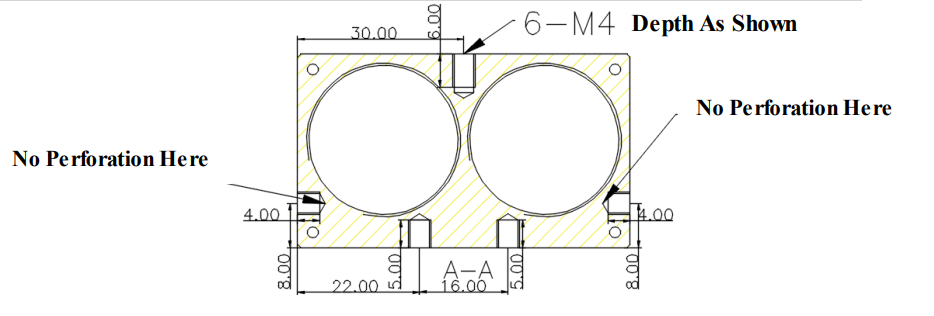

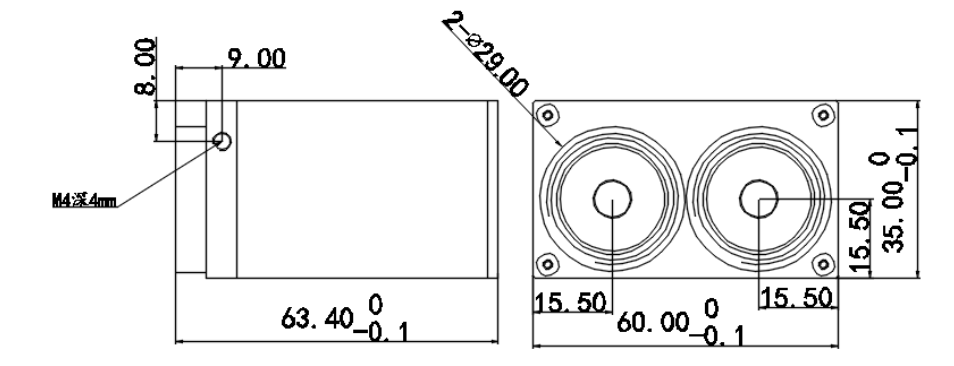

II. Mechanical Schematics


Note:
    1. Please read the manual carefully before operating.
    2. Please connect each cable correctly according to the definition in the manual.
    3. Please check the voltage and power supply before operating.
    4. Please check the data interface.
    5. Don’t immerse the device into water in spite of its water and dust proof.

III. Laser Safety
    The laser in the device used is Class 1, which is eye-safe one. Please refer to IEC
60825-1:2014《Laser products safety: Part I: Devices classifications, Requirements,
and user’s manual》.

IV. Copyright
    This product documentation is reserved to Brightlaser. Any person or any third part
cannot partly or whole copy without the permission from Brightlaser. Otherwise one
may be prosecuted.

V. Revision History


Note: Brightlaser reserves the right to make modification at any time due to improved design from time to time, the merit behind is to supply the best product possible.
