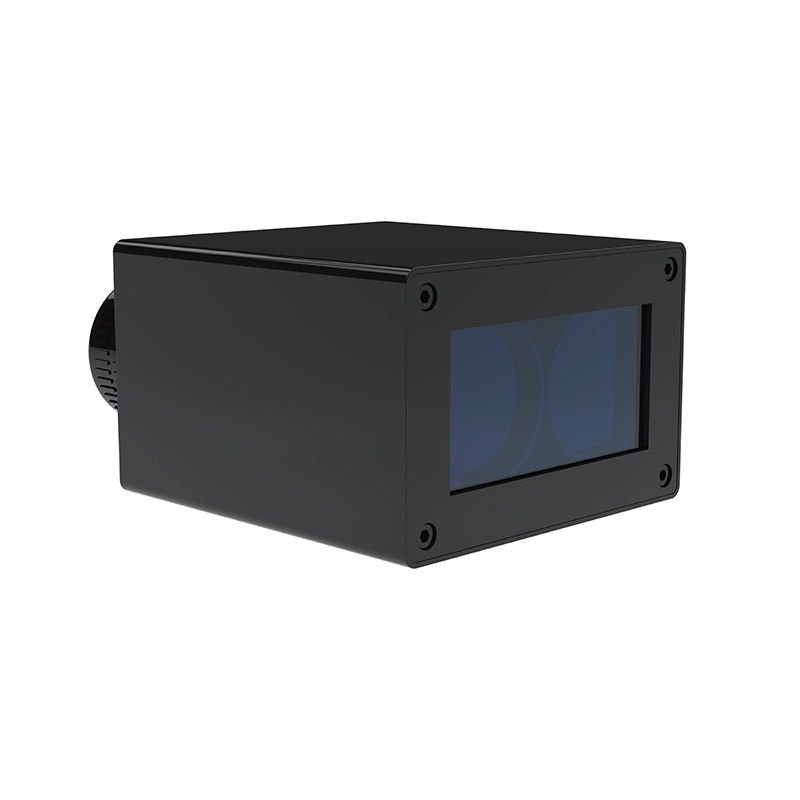

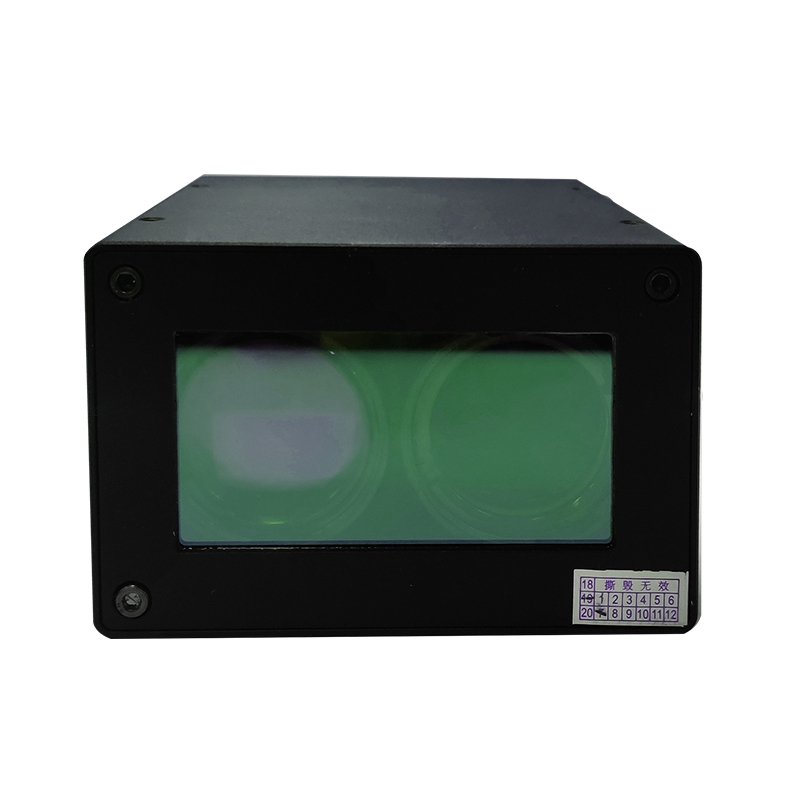

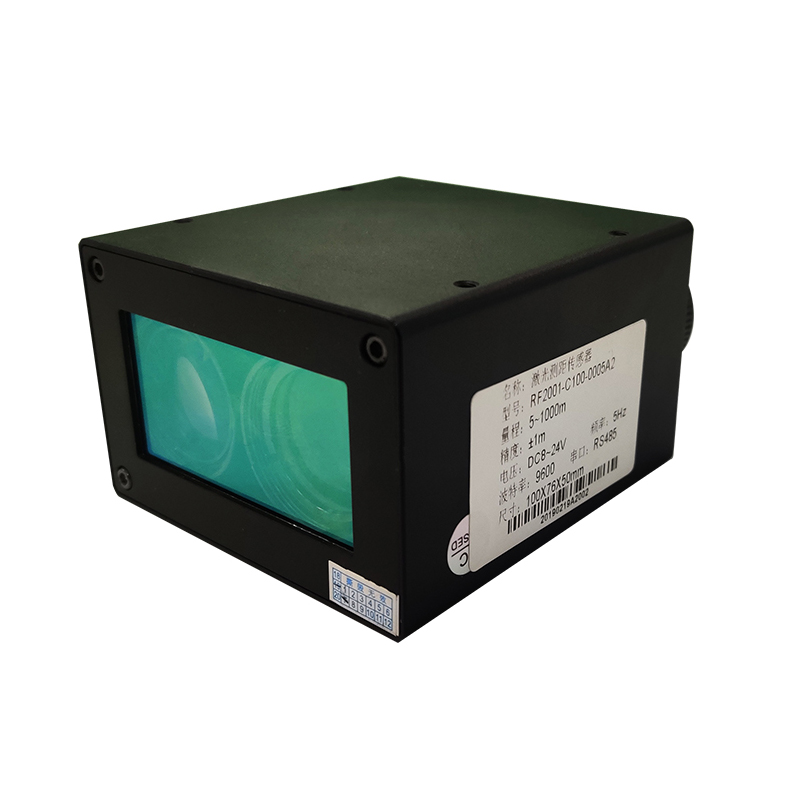

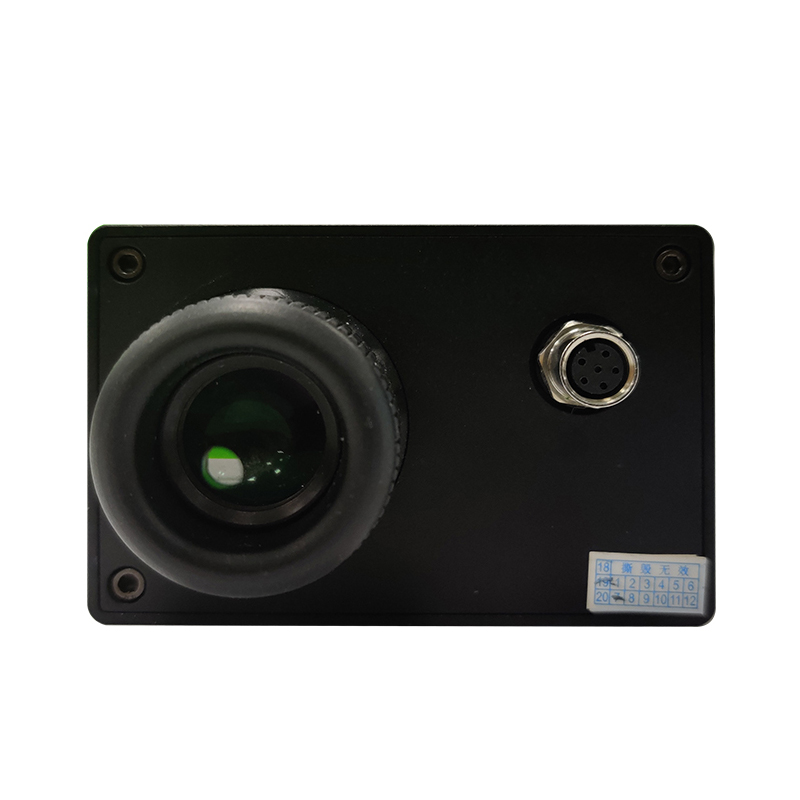

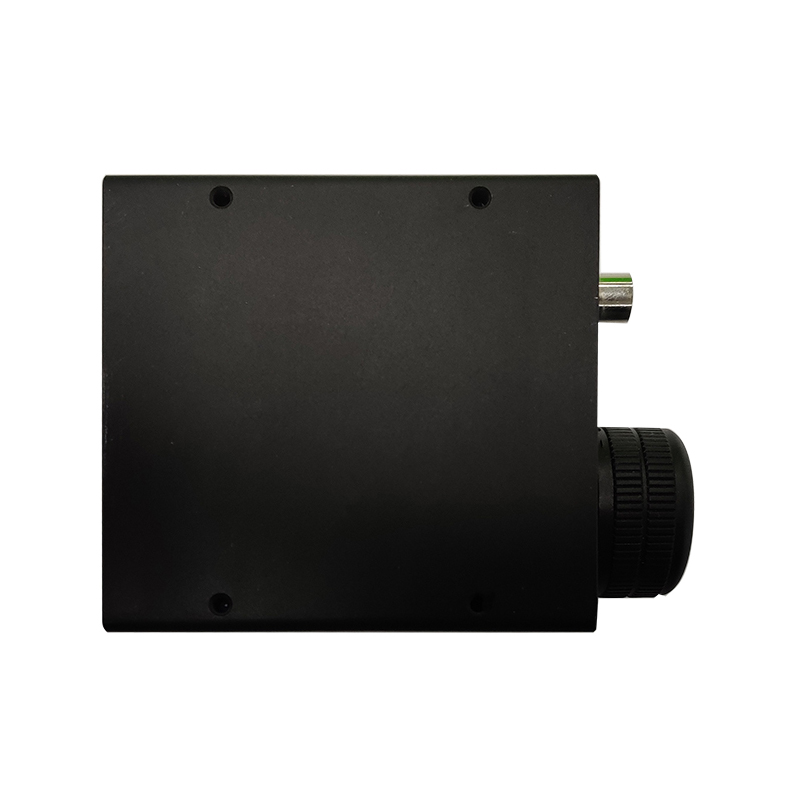

Range Finder Sensor LS-0905B-001K-AM-CA2
Date: 2021-10-14 14:43Page view:
|
Features
-
High precision
-
High measurement frequency
-
Long ranging up to 1000m
-
IP67 waterproof protection
-
Good real-time performance
-
Friendly interface
-
Small size
-
High reliability
Applications
-
Traffic light control
-
Positioning sensing
-
Electrical cable monitoring
-
Dam deformation monitoring
-
Hill slope monitoring
-
Range monitoring
-
Traffic flow monitoring
-
Stuff position monitoring
|
 |
|

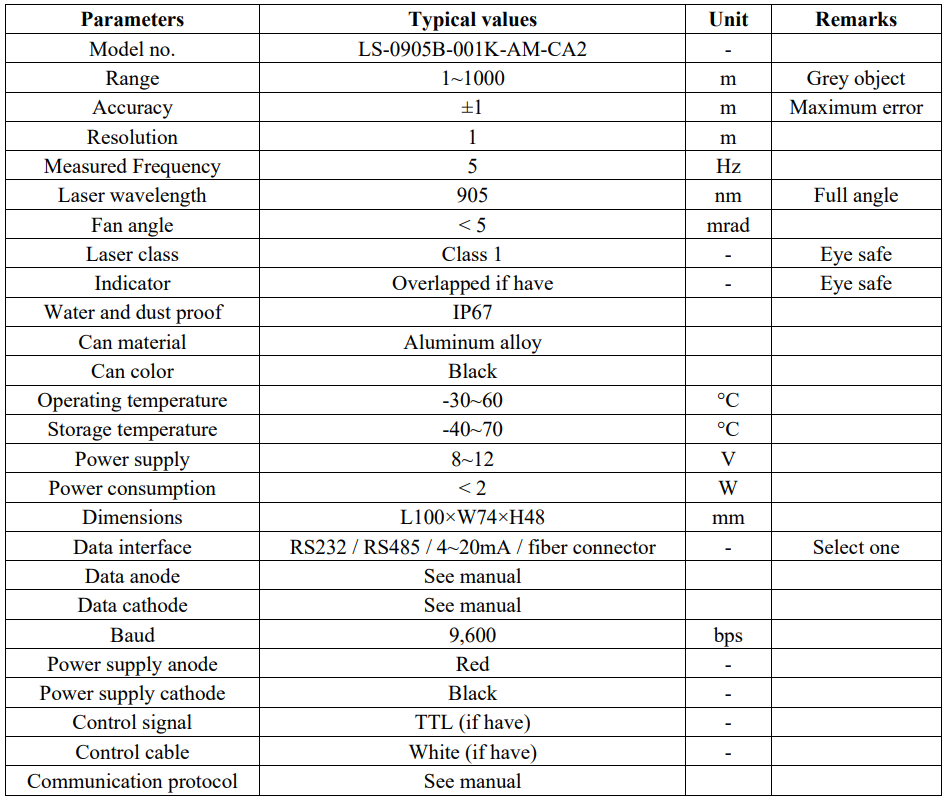

Part Number |
Description |
|
LS-0905B-001K-AM-CA2 |
905nm VCSEL, Range finder sensor, 1~1000m, 5Hz |

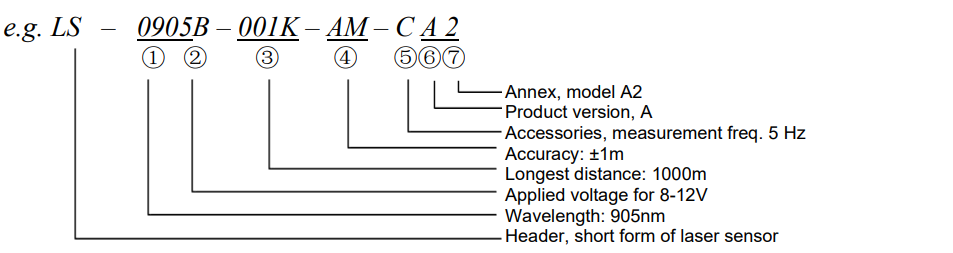

CODE RULES
Description
A2 is high-performance range finder sensors, integrated with excellent optics and high
accuracy timer. It can measure up to 5Hz and can give out the real-time distance between range finder
and the object. It is easy to integrate due to its friendly interfaces and compact size.

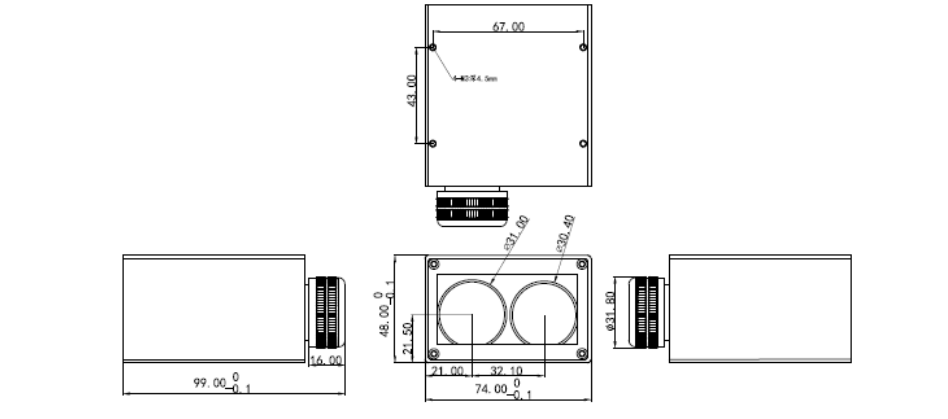

Mechanical drawing

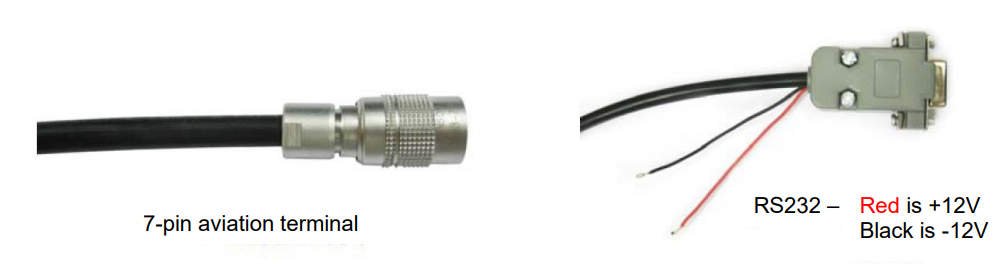

Electronic and electric connections
Notes:
1. Please read the manual carefully before operating.
2. Please connect each cable correctly according to the definition in the manual.
3. Please check the voltage and power supply before operating.
4. Please check the data interface.
5. Don’t immerse the device into water in spite of its water and dust proof.
Laser safety
The laser used in this device is classified as Class 1, which is eye-safe one. Please refer to
GB7247.1-2016 / IEC60825-1:2014 “Laser Product Safety: Part 1: Devices classifications, requirements
and user’s manual”.
Copyright
This product documentation is reserved to Brightlaser Limited. Any person or any third party
cannot partly or wholly copy without the permission from Brightlaser Limited. Otherwise one may
be prosecuted.

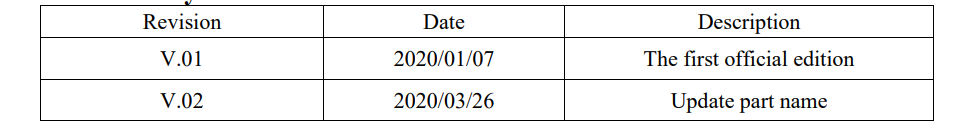

Revision history
