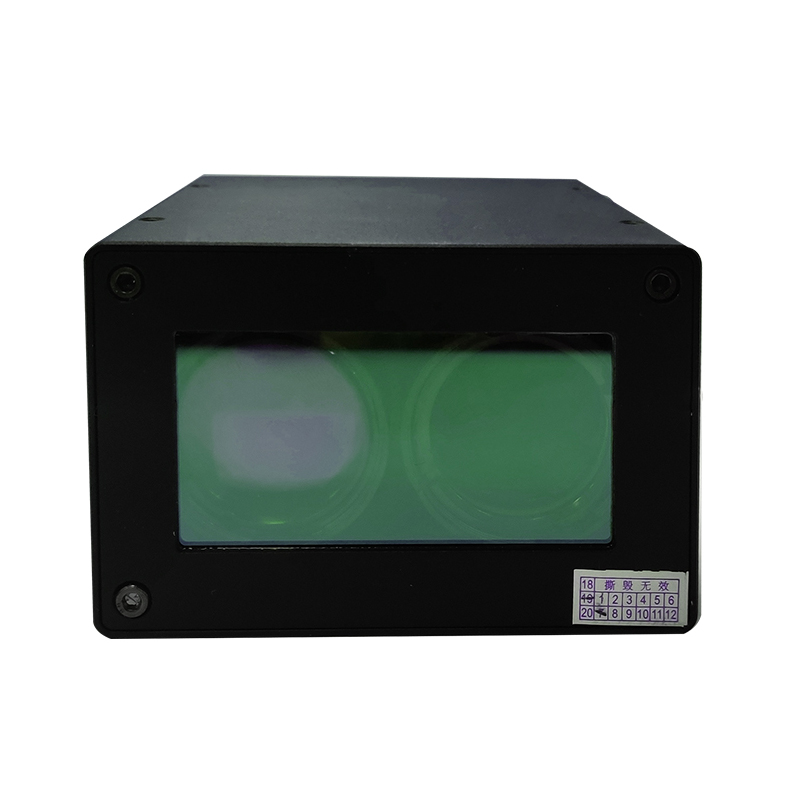

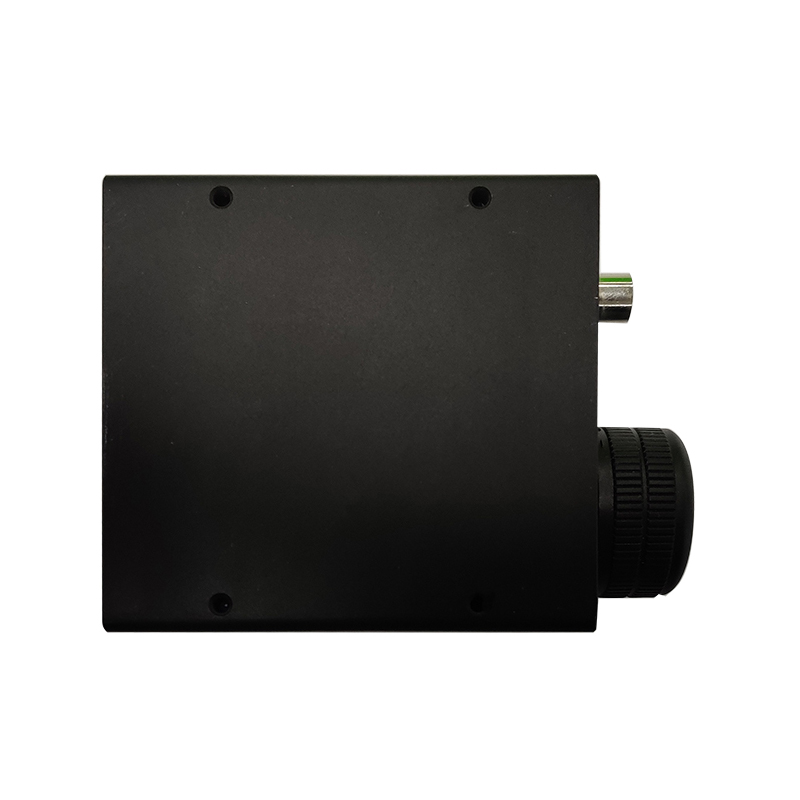

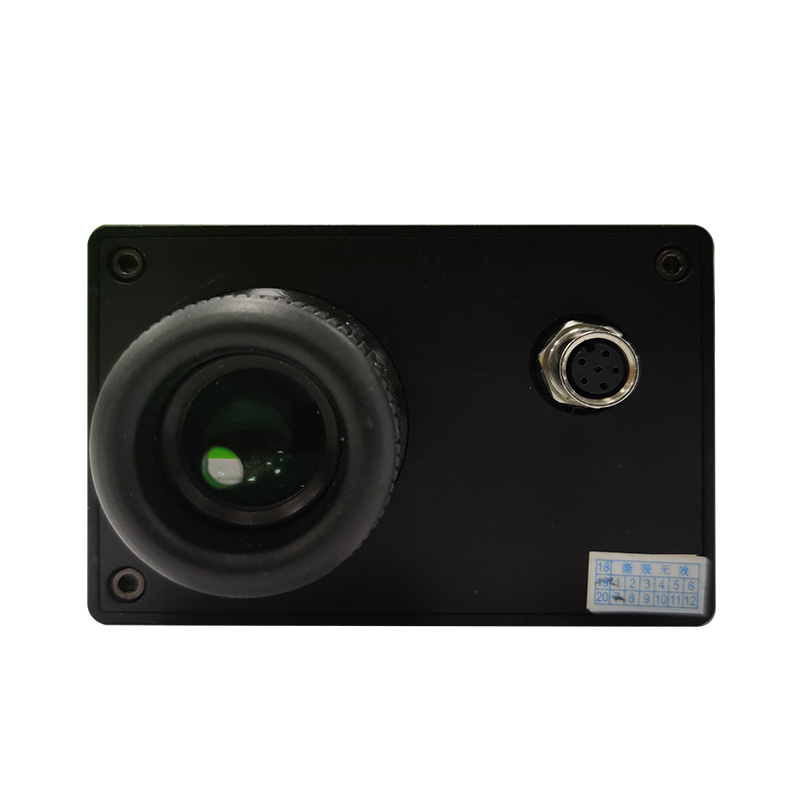

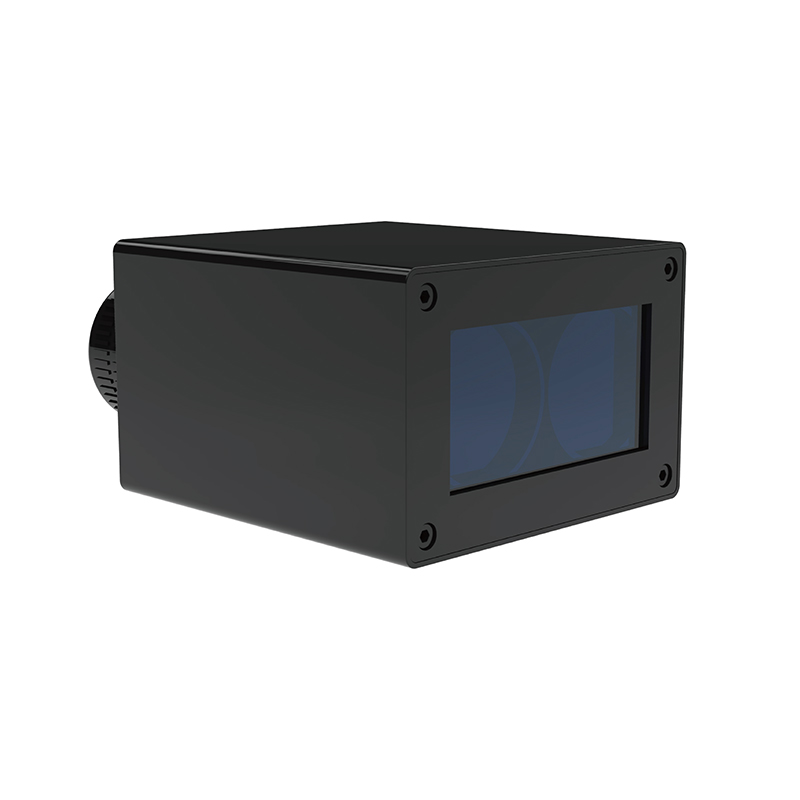

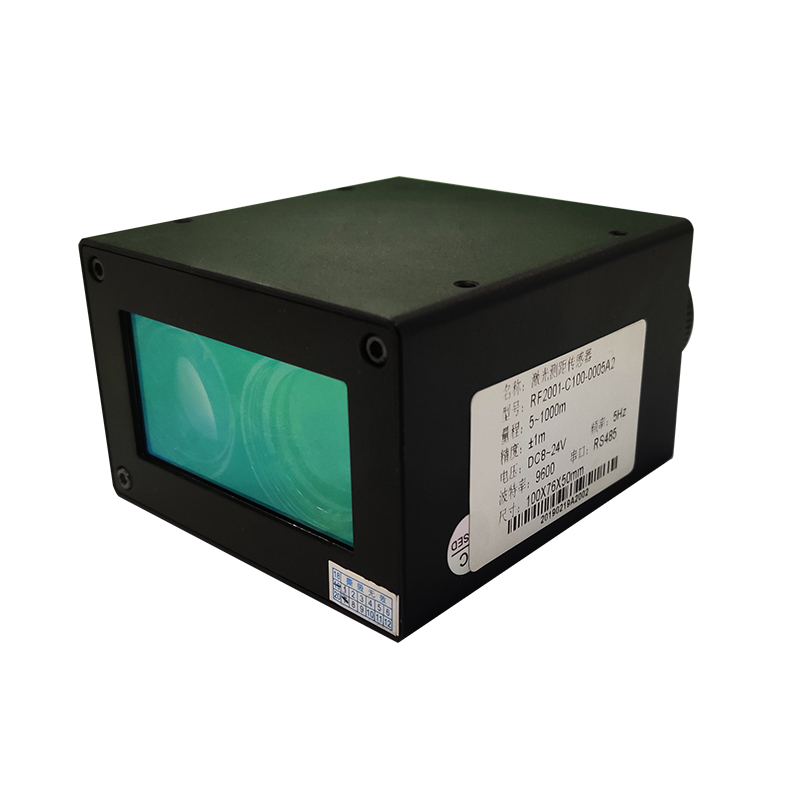

Range Finder Sensor LS-0905B-600M-AM-CA2

Date: 2021-10-14 14:41Page view:


Features
  • High precision
  • High measurement frequency
  • Long ranging up to 600m
  • IP67 waterproof protection
  • Good real-time performance
  • Friendly interface
  • Small size
  • High reliability

Applications
  • Traffic light control
  • Positioning sensing
  • Electrical cable monitoring
  • Dam deformation monitoring
  • Hill slope monitoring
  • Range monitoring
  • Traffic flow monitoring
  • Stuff position monitoring

Part Number Description
LS-0905B-600M-AM-CA2 905nm VCSEL, Range finder sensor, 0.5~600m, 5Hz

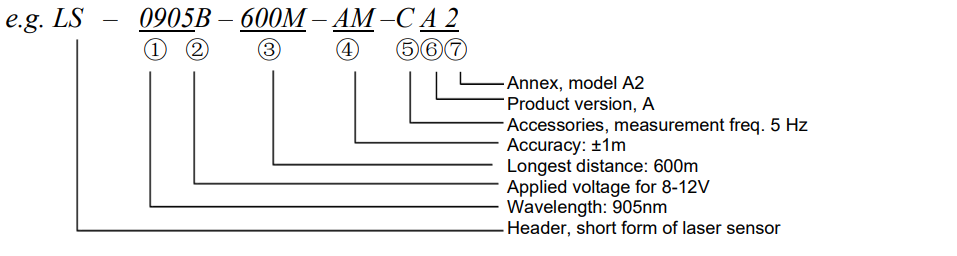

CODE RULES


Description
    A2 is high-performance range finder sensors, integrated with excellent optics and high accuracy timer. It can measure up to 5Hz and can give out the real-time distance between range finder and the object. It is easy to integrate due to its friendly interfaces and compact size.

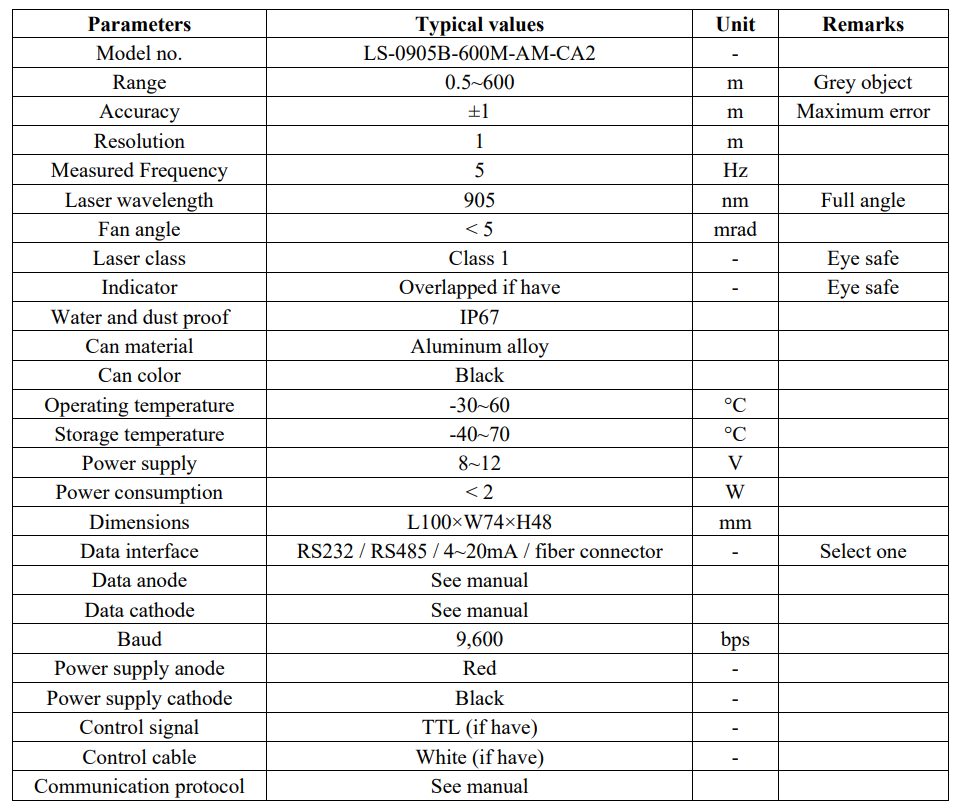

Specifications

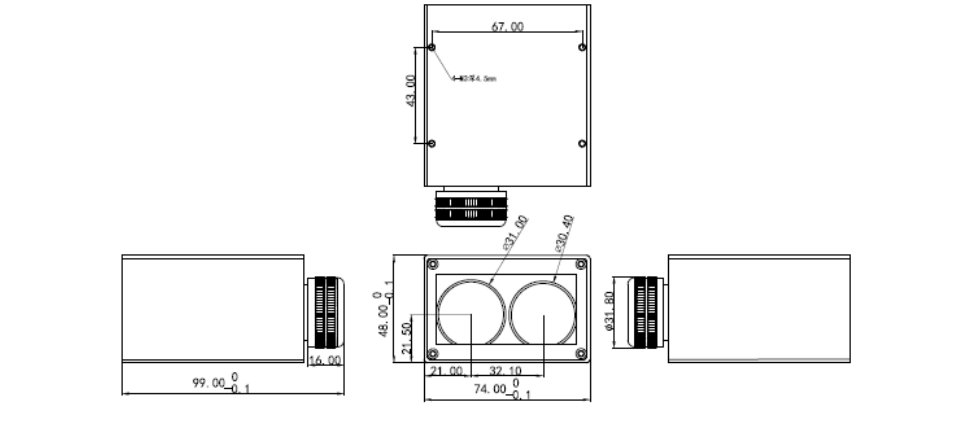

Mechanical drawing

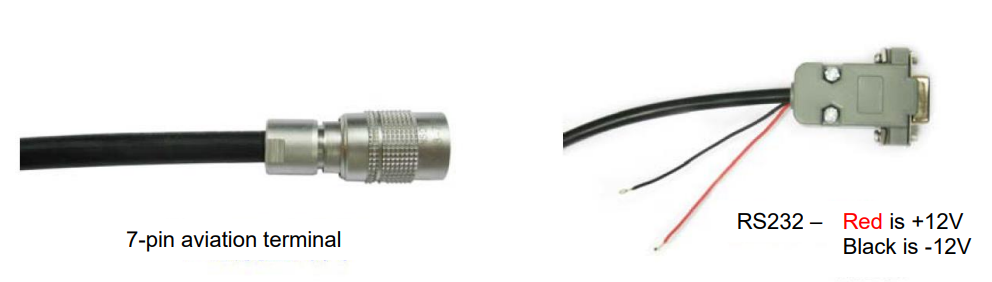

Electronic and electric connections

Notes:
    1. Please read the manual carefully before operating;
    2. Please connect each cable correctly according to the definition in the manual;
    3. Please check the voltage and power supply before operating;
    4. Please check the data interface;
    5. Don’t immerse the device into water in spite of its water and dust proof;

Laser safety
    The laser used in this device is classified as Class 1, which is eye-safe one. Please refer to GB7247.1-2016 / IEC60825-1:2014 “Laser Product Safety: Part 1: Devices classifications, requirements and user’s manual”.

Copyright
    This product documentation is reserved to Brightlaser Limited. Any person or any third party cannot partly or wholly copy without the permission from Brightlaser Limited. Otherwise one may be prosecuted.

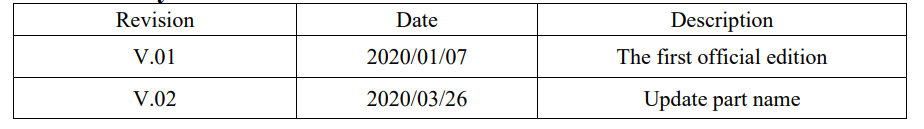

Revision history
