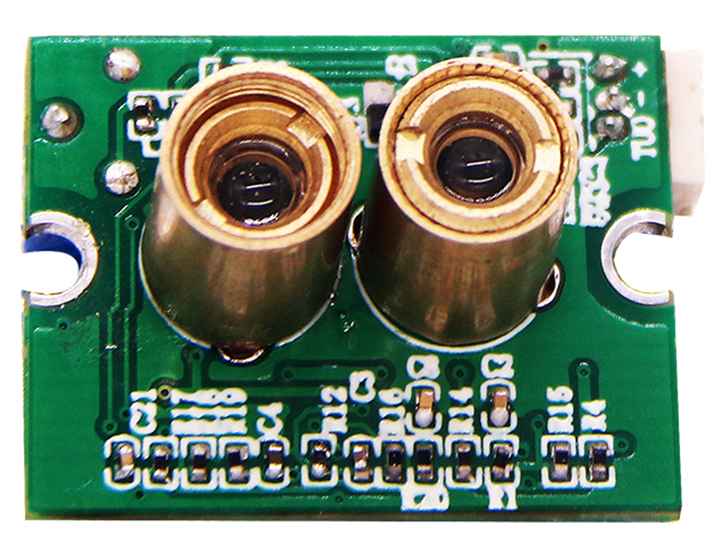

Range Finder Sensor LS-0940C-002M-IC-HA7
Date：2022-01-14
Page view：
|
Features
-
Good stability
-
Simple interface
-
Easy installation
-
Small size, low power consumption
Applications
-
Positioning sensing
-
Industrial control
-
Induction faucet
-
ADAS
|
 |
PRODUCT IDENTIFY
|
Part Number |
Description |
|
LS-0940G-002M-IC-HA7 |
940nm VCSEL, Range finder sensor, 5~200cm, 100Hz, High-low potential level |
CODE RULES
Specifications
Mechanical drawing (unit: mm)
Pin:
Notes:
1. Signal: output low level (close to 0 V) of signal line within range; output high level (5 V) of signal line outside range
2. Induction distance: the potentiometer on the control panel can be adjusted according to the actual situation. Counterclockwise slow adjustment increases the induction distance, while clockwise slow adjustment reduces the induction distance.
Laser safety
The laser used in this device is classified as Class I, which is eye-safe one. Please refer to GB7247.1-2016 / IEC60825-1:2014 “Laser Product Safety: Part 1: Devices classifications,requirements and user’s manual”.
Copyright
This product documentation is reserved to Brightlaser Limited. Any person or any third party cannot partly or wholly copy without the permission from Brightlaser Limited.Otherwise one may be prosecuted.
Revision history
