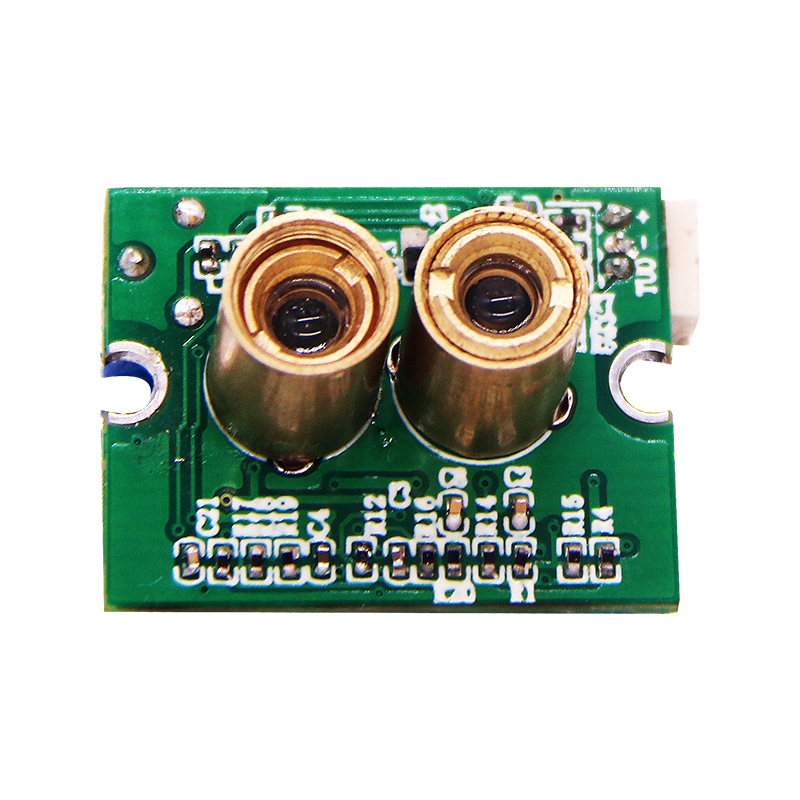

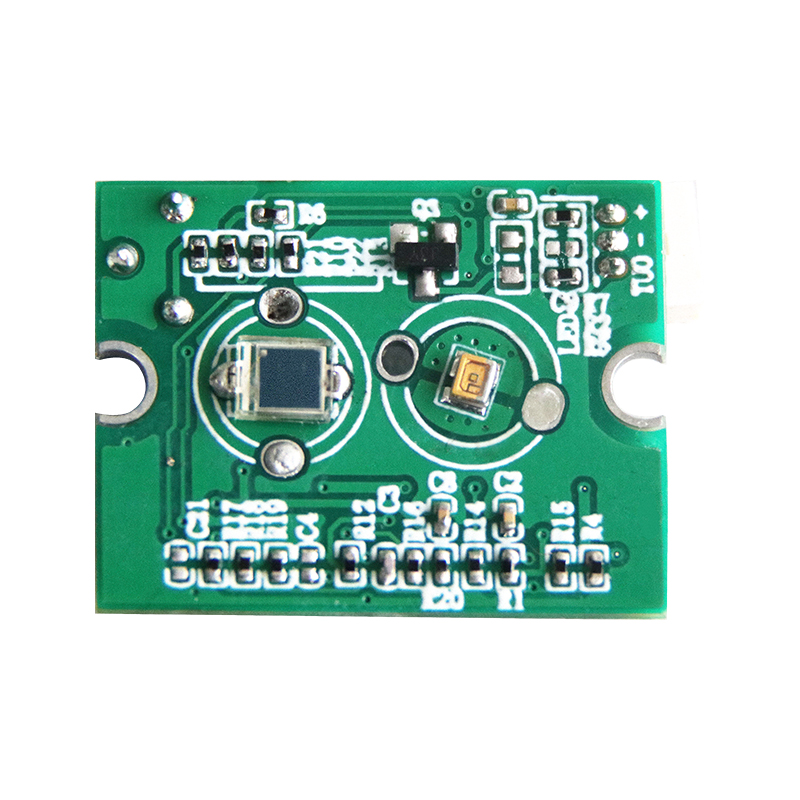

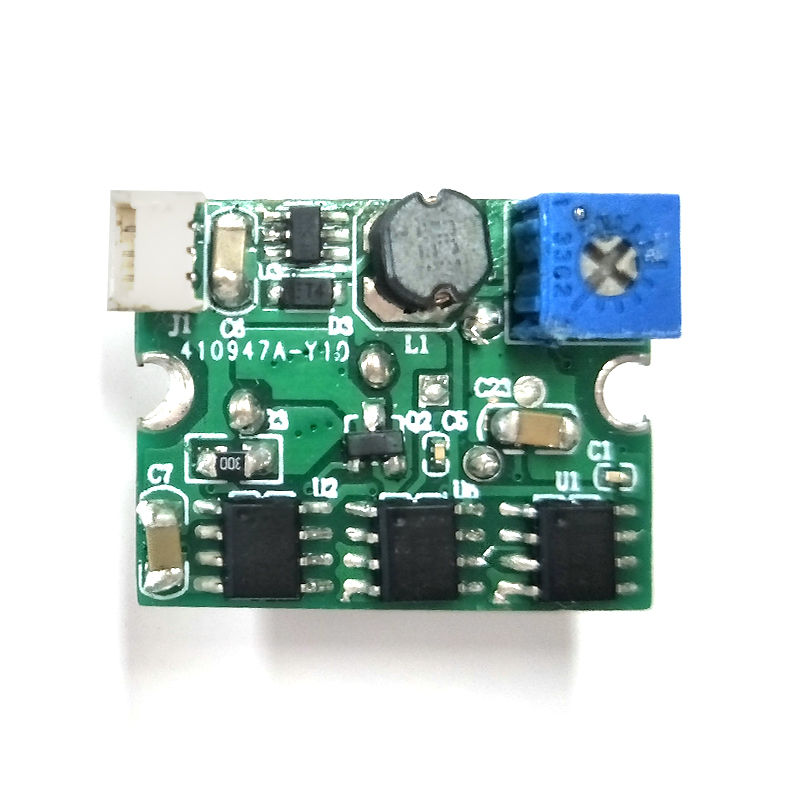

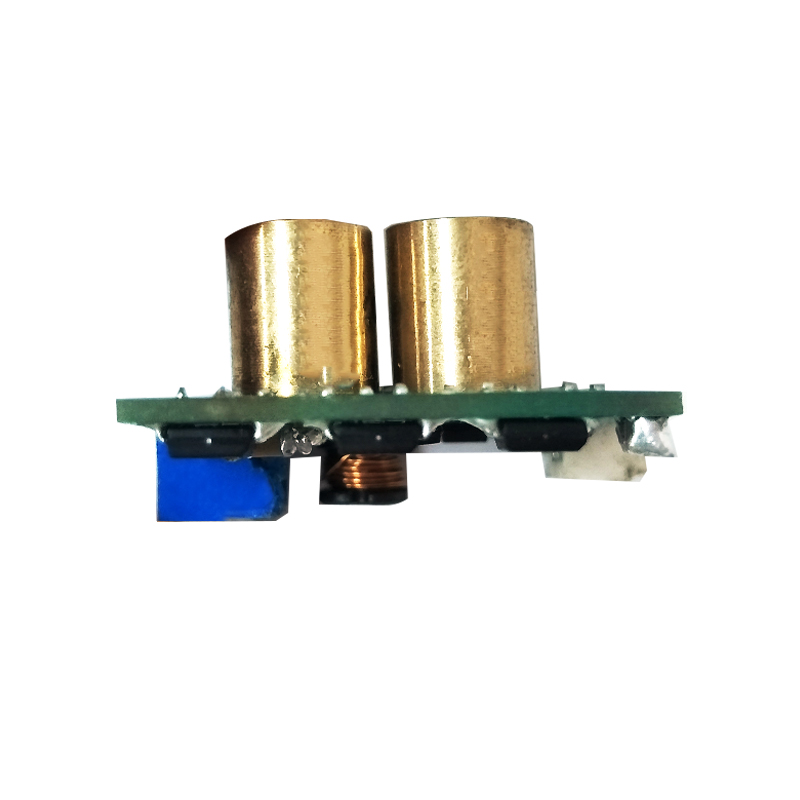

Range Finder Sensor LS-0940C-002M-IC-HA7

Date: 2021-10-14 14:57Page view:

Features

Good stability
Simple interface
Easy installation
Small size, low power consumption

Applications

Positioning sensing
Industrial control
Induction faucet
ADAS

PRODUCT IDENTIFY

Part Number	Description
LS-0940G-002M-IC-HA7	940nm VCSEL, Range finder sensor, 5~200cm, 100Hz, High-low potential level

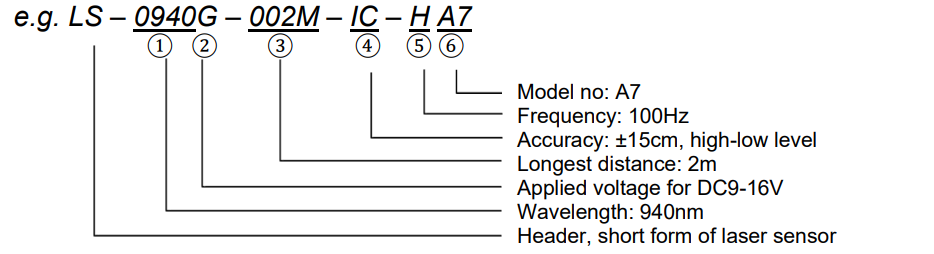

CODE RULES

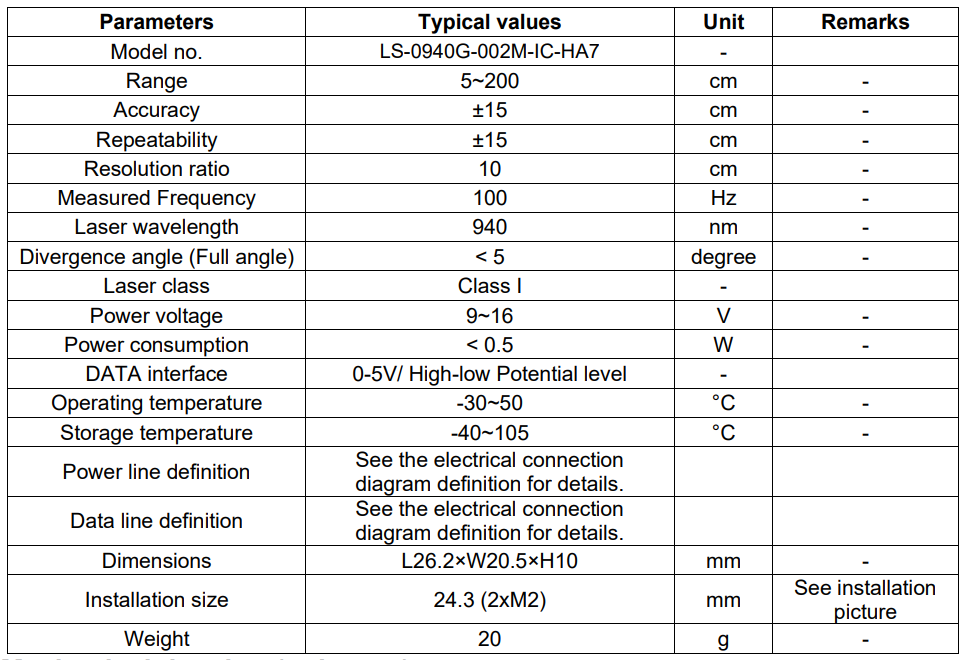

Specifications

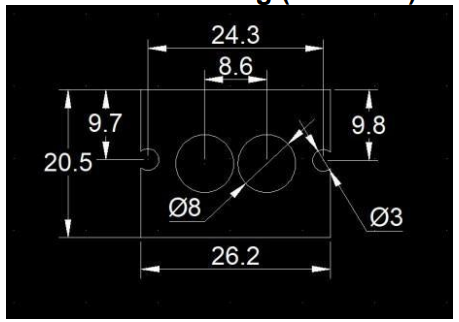

Mechanical drawing (unit: mm)

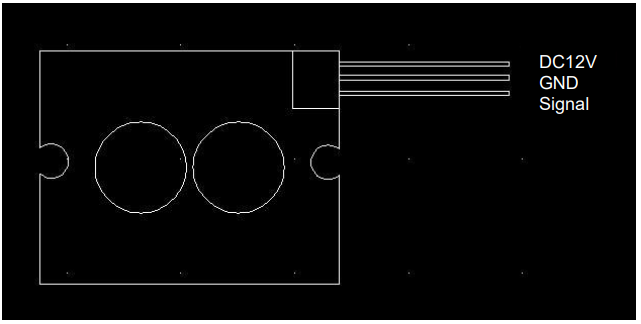

Pin:

Notes:

1. Signal: output low level (close to 0 V) of signal line within range; output high level (5 V) of signal line outside range

2. Induction distance: the potentiometer on the control panel can be adjusted according to the actual situation. Counterclockwise slow adjustment increases the induction distance, while clockwise slow adjustment reduces the induction distance.

Laser safety

The laser used in this device is classified as Class I, which is eye-safe one. Please refer to GB7247.1-2016 / IEC60825-1:2014 “Laser Product Safety: Part 1: Devices classifications,requirements and user’s manual”.

Copyright

This product documentation is reserved to Brightlaser Limited. Any person or any third party cannot partly or wholly copy without the permission from Brightlaser Limited.Otherwise one may be prosecuted.

Revision history
